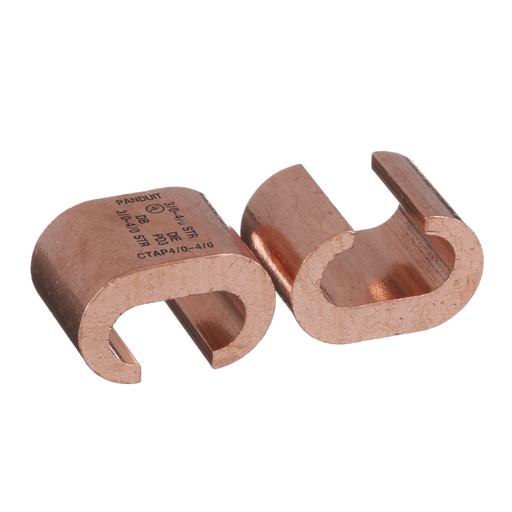

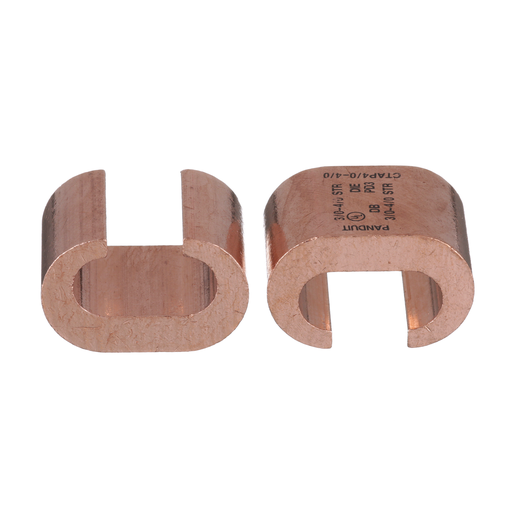

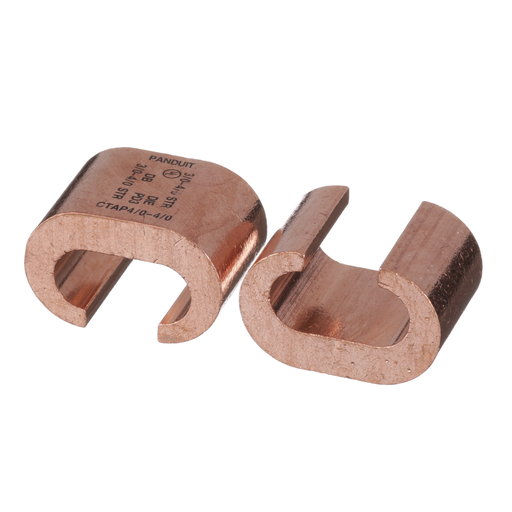

Panduit CTAP4/0-4/0-X Heavy Duty 3/0-4/0 AWG STR Copper Compression C-Tap

Manufacturer: Panduit Corp | Catalog # CTAP4/0-4/0-X | Echo Electric Part # 130305
$3,116.29/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The CTAP4/0-4/0-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL 486 for use up to 35 kv and temperature rated 90°. Also, UL listed per UL 467 for grounding and bonding suitable for direct burial.

Technical Information

Amperage
8-4/0
Applications
Utility/Ground Grid
Conductor Size
3/0-4/0 AWG
Material
Copper
Mounting Type
Direct Burial
Tap Size
3/0 - 4/0 AWG STR
Type
Compression Tap
Voltage
35000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983911219
Color
Copper
GTiN
00074983911219
Product UPC
07498391121

Dimensions

Height
1.57 Inch
Length
1 Inch
Overall Length
1 in
Width
1.08 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL 467 listed for Grounding and Bonding and UL 486A for electrical connections up to 35kV.
