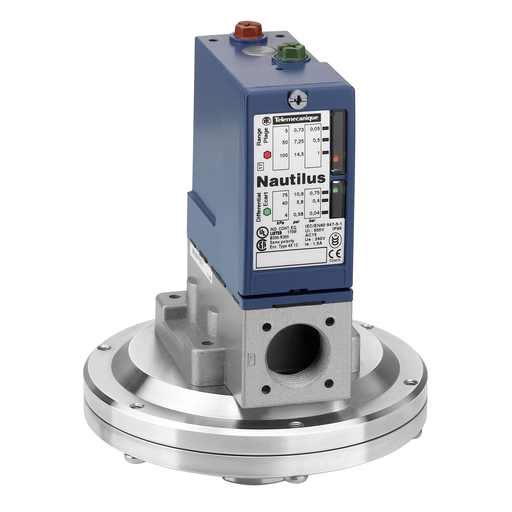

Product image for SQD XMLBL35S2S11 pressure switch XM
Email

SQD XMLBL35S2S11 pressure switch XM

Manufacturer: TESENSOR | Catalog # XMLBL35S2S11 | Echo Electric Part # 130745
$617.76/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
pressure switch XMLB 350 mbar - adjustable scale 2 thresholds - 1 C/O

Technical Information

Amperage
3 Amp
Applications
Regulation between 2 thresholds;-
Cable Entry
Cable gland 0.350.51 in (913 mm)
Contact Configuration
1 C/O
Contact Material
Silver
Enclosure
Zinc alloy
Enclosure Material
Zinc
Line Rated Current
0.1 A
Net Weight
2.575 kg
Operating Cycles
120 CYC/MN
Operating Temperature
-25-70 Adegrees C
Standard
CE,CSA C22.2 No 14,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Electromechanical pressure sensor;Electromechanical pressure sensor;Adjustable differential

Manufacturer Information

Brand
Telemecanique
Sub Brand
XMLB

General Product Info

12-Digit UPC
785901667315
GTiN
03389110713145
Product UPC
78590166731

Dimensions

Depth
110 mm
Height
162 mm
Warranty Length
18 mth
Width
110 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,EAC,LROS (Lloyds Register Of Shipping),UL
