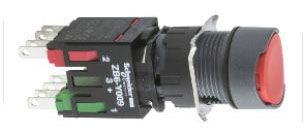

Product image for Square D XB6AA42B 16 mm 240 VAC 1.5 Amp 1NC Red Round Flush/Spring Return Non-Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Email

Square D XB6AA42B 16 mm 240 VAC 1.5 Amp 1NC Red Round Flush/Spring Return Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB6AA42B | Echo Electric Part # 131334
$43.72/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Non-Illuminated Momentary Pushbutton

Technical Information

Actuator
RED FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NC
Contact Material
Silver Alloy
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Net Weight
0.019 kg
Operating Temperature
-25-70 Adegrees C
Size
16 mm
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
COMPLETE PUSH-BUTTON

Manufacturer Information

Brand
Harmony®
Sub Brand
XB6

General Product Info

12-Digit UPC
785901356141
GTiN
03389110764314
Product UPC
78590135614
Weight
0.04 lb

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
Yes
Certifications
CCC,CSA,GOST,UL
Country of Origin
Mexico
Additional Information
  • Terminal Type Quick Connect/Solder Tab
  • Contact Material Silver Alloy
Features
  • RoHS/REACH Compliant
  • Mercury-Free
  • Toxic Heavy Metal Free
  • Green Premium Product
