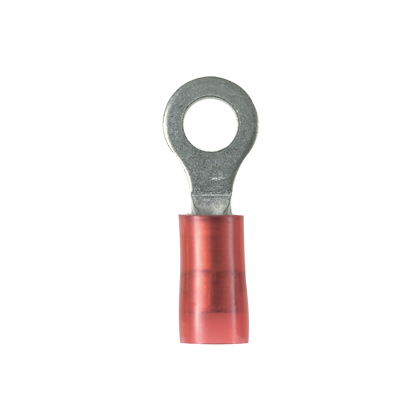

Product image for Panduit PN18-6R-C 22-18 AWG Nylon Insulated Ring Terminal
Email

Panduit PN18-6R-C 22-18 AWG Nylon Insulated Ring Terminal

Manufacturer: Panduit Corp | Catalog # PN18-6R-C | Echo Electric Part # 131986
$216.48/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
The PN18-6R-C Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Red
Conductor Size
22 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#6
TC Connection
Standard
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.25 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983800025
Color
Red
Finish
Tin Plated
GTiN
00074983800025
Product UPC
07498380002

Dimensions

Overall Length
0.79 in
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-102)
