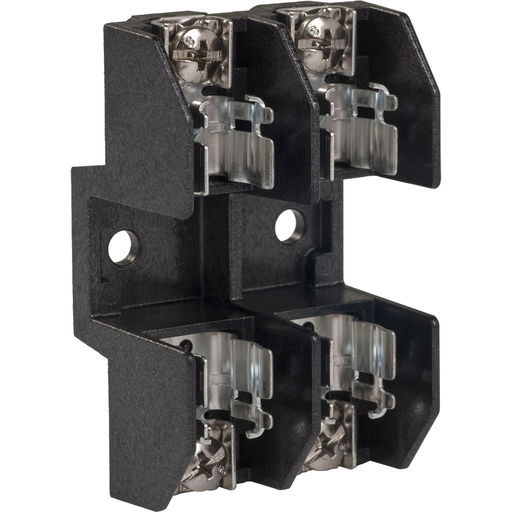

Product image for Square D 9080FB2211 30 Amp 250 Volt 2-Pole Thermoplastic Class H Standard Terminal Block Fuse Holder
Email

Square D 9080FB2211 30 Amp 250 Volt 2-Pole Thermoplastic Class H Standard Terminal Block Fuse Holder

Manufacturer: Square-D / Schneider | Catalog # 9080FB2211 | Echo Electric Part # 133599
$44.08/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.

Technical Information

Amperage
30 Amp
Applications
0.5625 X 2 IN,H
Current
30 Amp
Fuse Type
H
Line Rated Current
30 A
Material
Thermoplastic: Block
Mounting Type
Surface Mount
Number of Poles
2 Pole
Operating Temperature
-40257 degrees F (-40125 degrees C)
Range
9080FB NULL
Size
1.38 IN,1.91 IN,3 IN
Strip Length
0.437 in
TC Connection
AWG 14...AWG 10 COPPER OR ALUMINIUM,PRESSURE WIRE CLAMP,SCREW TERMINALS 25 LBF.IN AWG 14...AWG 10 COPPER
Type
FUSE HOLDER
Voltage
250 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901096993
Class
H
GTiN
00785901096993
Product UPC
78590109699

Dimensions

Depth
1.38 Inch
Height
3 Inch
Length
0.437 Inch
Warranty Length
18 mth
Width
1.91 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70360 Class 6225 01,UL Listed File E40747 CCN IZLT
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
