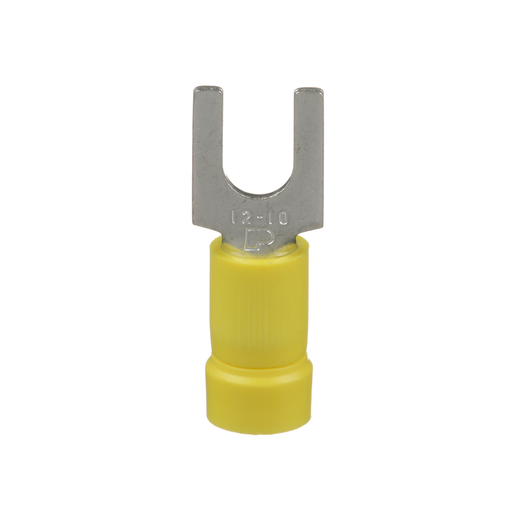

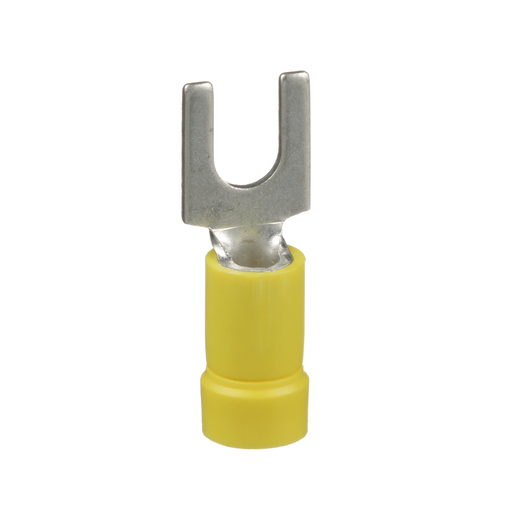

Product image for Panduit PV10-10F-L Vinyl Insulated Fork Terminal - #14-10, #10bolt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit PV10-10F-L Vinyl Insulated Fork Terminal - #14-10, #10bolt

Manufacturer: Panduit Corp | Catalog # PV1010FL | Echo Electric Part # 134044
$177.64/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
650 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
The PV10-10F-L Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.

Technical Information

Barrel Length
0.41 in
Barrel Type
Funnel
Color Coding
Yellow
Conductor Size
14-10 AWG
Enclosure
Fork shape
Insulation Material
Vinyl
Material
Copper
Max Operating Temperature
105 degrees C
Size
#10
Stud Size
#10
TC Connection
Funnel
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.37 in
Type
Loose-Piece
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983804146
Color
Yellow
Finish
Tin Plated
GTiN
00074983804146
Product UPC
07498380414

Dimensions

Overall Length
1.04 in
Width
0.37 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
