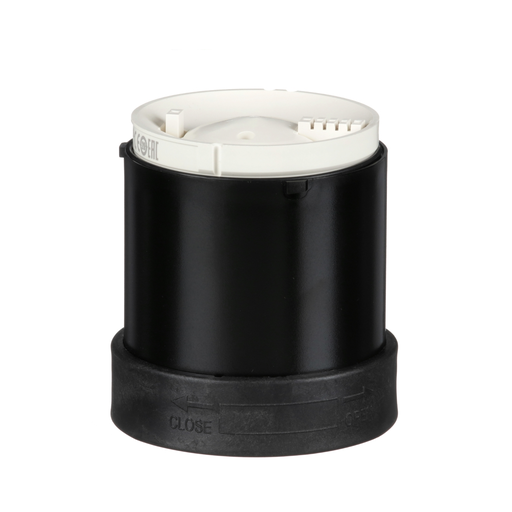

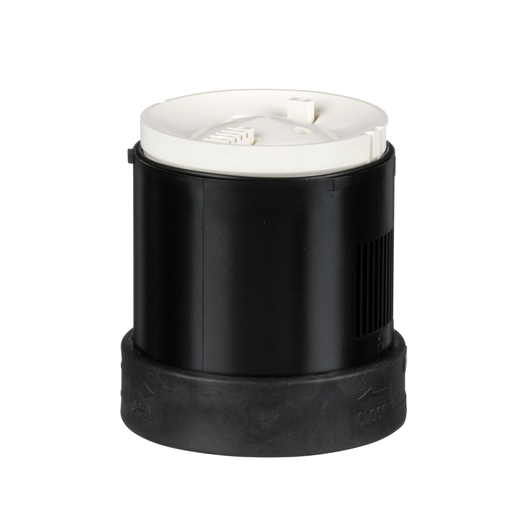

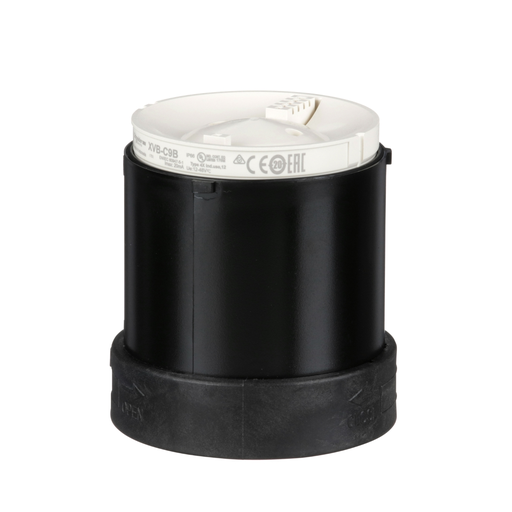

Product image for Square D XVBC9B 70 mm 48 VAC/VDC 90 dB Beacon Audible Sounder Unit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Square D XVBC9B 70 mm 48 VAC/VDC 90 dB Beacon Audible Sounder Unit

Manufacturer: Square-D / Schneider | Catalog # XVBC9B | Echo Electric Part # 134280

$343.14/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Technical Information

Applications
CONTINUOUS OR INTERMITTENT BUZZER
Current
15 mA
Enclosure
NEMA 4X UL 508 INDOOR)
Loudness
70-90 DB 1 M
Net Weight
0.17 kg
Operating Temperature
-25-50 degrees C
Output
70...90 DB AT 1 M
Power Supply
12...48 V AC/DC,< 15 MA
Standard
EN/IEC 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 1 X 1.5 MMA WITH CABLE END
Type
AUDIBLE UNIT,INDICATOR BANK

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVBC

General Product Info

12-Digit UPC
389110845962
Environmental Conditions
-25-50 AC,IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529
GTiN
03389110845969
Product UPC
78590184596
Weight
0.17 kg

Dimensions

Height
63 mm
Warranty Length
18 mth
Width
70 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA C22-2 No 14,EAC,UL 508
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
