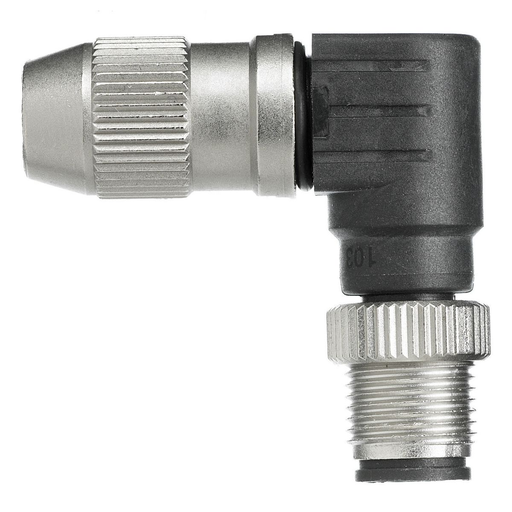

Product image for HCI MIMA14IDC MCQK, MALE ANG INL PL
Email

HCI MIMA14IDC MCQK, MALE ANG INL PL

Manufacturer: Hubbell Wiring Device | Catalog # MIMA14IDC | Echo Electric Part # 135157
$53.67/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Field Attachable Micro-Quick Control Connectors, Male Angled 4 Wire, Insulation Displacement

Technical Information

Amperage
3 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Size
16 AWG
Conductor Type
Copper
Contact Material
Copper Alloy
Insulation Material
Polyester Elastomer
Number of Conductors
4-Pole
Number of Poles
4 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Temperature Rating
-20 To 105 degrees C
Type
Male Angled In-Line Plug
Voltage
600 VAC//VDC
Wattage
4800 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Micro-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585226729
Color
Black
Construction
Fabricated
GTiN
00783585226729
Product UPC
78358522672

Dimensions

Diameter
0.67 Inch
Height
5-1/2 Inch
Length
6.2 Inch
Width
0.5 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Features
  • Strain relief bushing protects terminations
  • Wire Guide for virtually toolless termination
  • Insulation displacement contacts are made of Copper Alloy
  • Single Key, Insulation Displacement
