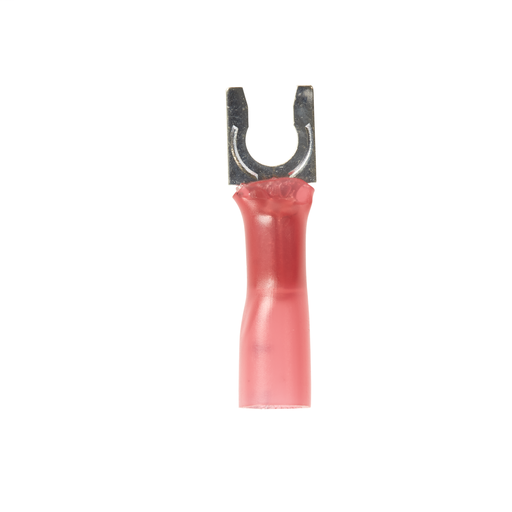

Product image for 3M 7010398254 3M™ Scotchlok™ Heat S
Image thumbnail 0
Image thumbnail 1
Email

3M 7010398254 3M™ Scotchlok™ Heat S

Manufacturer: 3M | Catalog # 7010398254 | Echo Electric Part # 135615
$202.91/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
18 AWG
Insulation Material
Heat Shrink
Terminal Style
Locking
Terminal Type
Fork

Manufacturer Information

Brand
Scotchlok

General Product Info

12-Digit UPC
051128590966
GTiN
00051128590966
Product UPC
05112859096

Dimensions

Length
1 Inch
Overall Length
1 in
Thickness
0.03 in
  • 25/carton, 125/case
  • Accommodates wire sizes 22 to 18 AWG
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Stud size #8
  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Brazed-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
