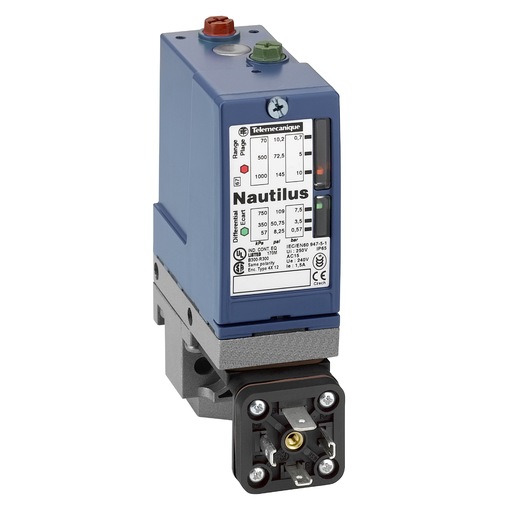

Product image for SQUARED XMLB300D2C11 pressure switc
Email

SQUARED XMLB300D2C11 pressure switc

Manufacturer: TESENSOR | Catalog # XMLB300D2C11 | Echo Electric Part # 136135
$859.69/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. This pressure switch is designed for regulation of pressure between 2 thresholds for hydraulic oils at temperatures up to 160.C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 3 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 300bar, this makes it ideal for hydraulic presses, water jet cutting machines.

Technical Information

Applications
-,REGULATION BETWEEN 2 THRESHOLDS
Contact Configuration
1 C/O
Contact Material
Silver
Enclosure
ZINC ALLOY
Enclosure Material
Zinc
Line Rated Current
0.1 A
Net Weight
0.78 kg
Operating Cycles
60 CYC/MN
Operating Temperature
-25-70 Adegrees C
Standard
CE,CSA C22.2 No 14,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
3 A, B300, AC-15 (UE = 120 V)EN/IEC 60947-5-1-1.5 A, B300, AC-15 (UE = 240 V)EN/IEC 60947-5-1-0.1 A, R300, DC-13 (UE = 250 V)EN/IEC 60947-5-1,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SENSOR,ELECTROMECHANICAL PRESSURE SENSOR

Manufacturer Information

Brand
Telemecanique
Sub Brand
XMLB

General Product Info

12-Digit UPC
338911071438
GTiN
03389110714395
Product UPC
33891107143

Dimensions

Depth
75 mm
Height
113 mm
Warranty Length
18 mth
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,EAC,LROS (Lloyds Register Of Shipping),UL
