3M 7000031482 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7000031482 | Echo Electric Part # 136729
$120.78/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

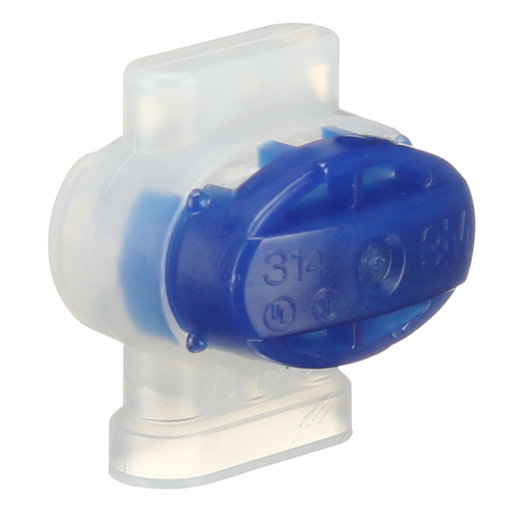

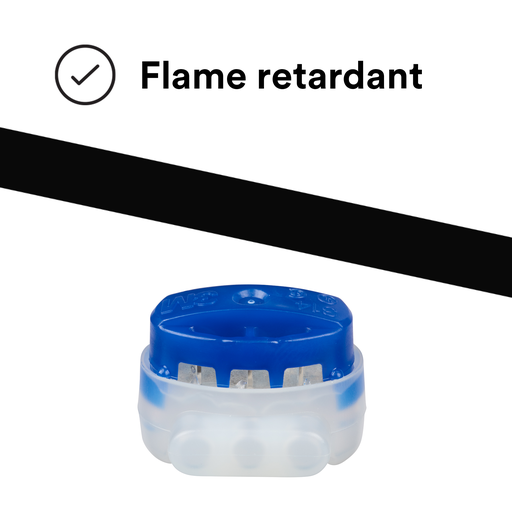

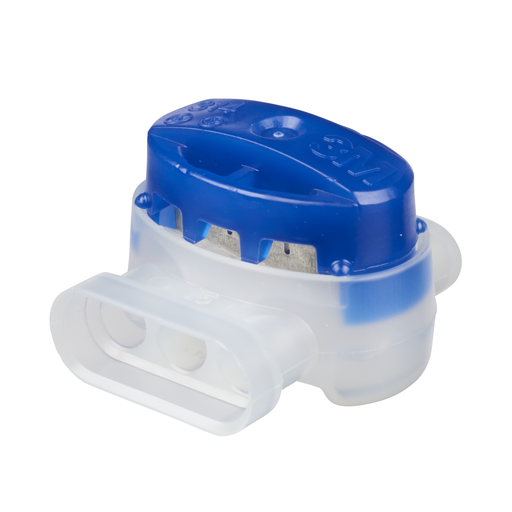

3M™ Scotchlok™ Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant and moisture resistant.

Technical Information

Cable Size
22-14 AWG
Cable Type
Pigtail
Conductor Size
22-14 AWG
Material
Nylon
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
22-14 AWG

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007092315
Color
Blue
GTiN
00054007092315
Housing Material
Flame Retardant Nylon
Product Type
Connector
Product UPC
05400709231

Certifications and Compliance

Country of Origin
USA
Features

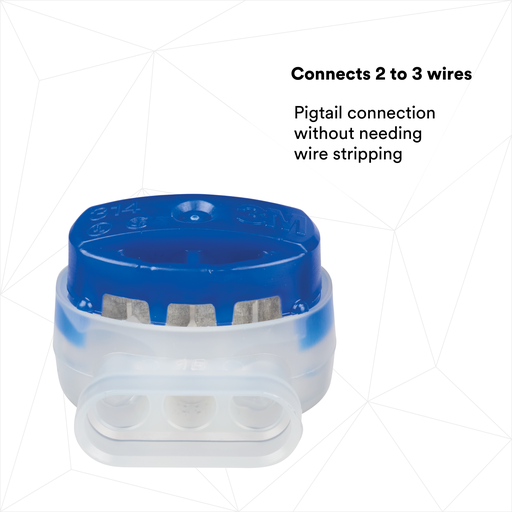

  • CONNECTS 2 TO 3 WIRES: Pigtail connection without needing wire stripping
  • MOISTURE RESISTANCE: Due to mineral oil based grease.

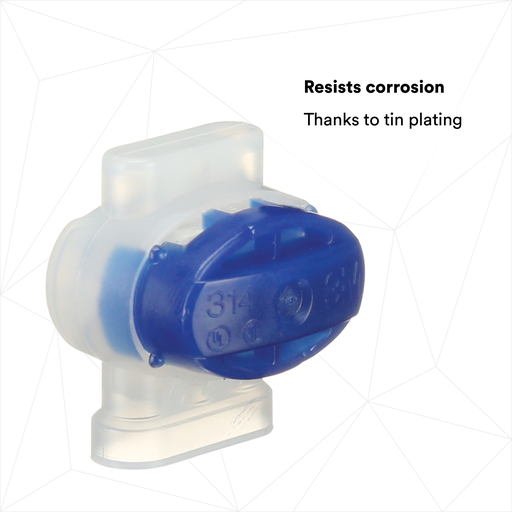

  • RESISTS CORROSION: Thanks to tin plating
  • ACCOMMODATES SOLID/STRANDED: 22 to 14 AWG
  • COMPLIANCE: UL Listed, CSA Certified and RoHS Compliant
  • STABILITY: 5-year shelf life (from date of manufacture)
