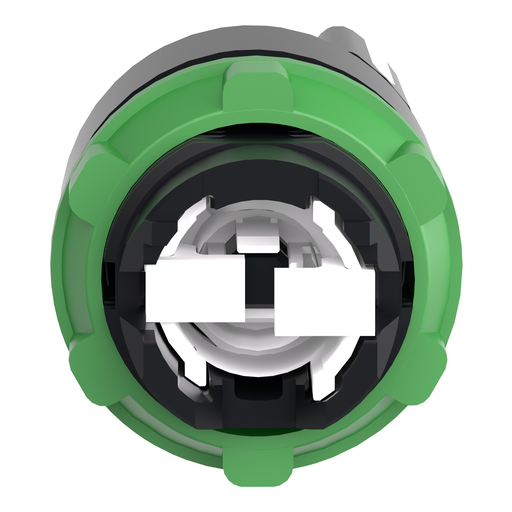

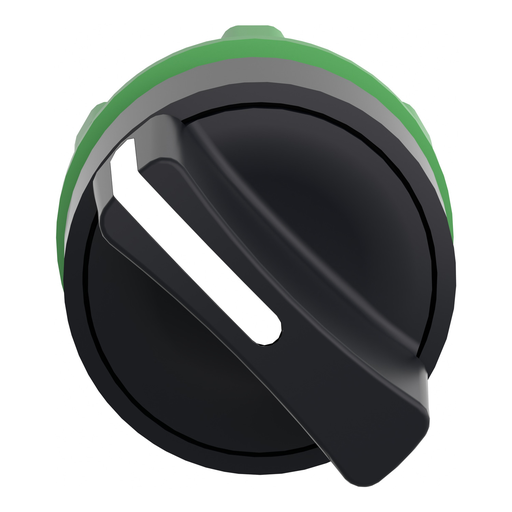

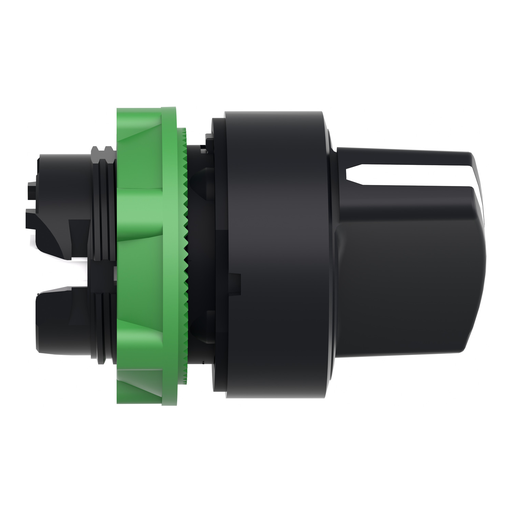

Product image for Square D ZB5AD4 22 mm 2-Position Black Maintained/Momentary Lever Non-Illuminated Selector Switch Operator
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Square D ZB5AD4 22 mm 2-Position Black Maintained/Momentary Lever Non-Illuminated Selector Switch Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5AD4 | Echo Electric Part # 137020

$44.88/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
3 available

For Delivery

Not in local stock *
Check another branch
This Harmony XB5, black selector switch head with standard handle has 2 positions, operates with spring return from right to left mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical Information

Action
SPRING RETURN RIGHT TO LEFT
Actuator
2 positions 90
Applications
SELECTOR SWITCH
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
BLACK
Net Weight
0.02 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for selector switch

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110905123
Color
Black
Environmental Conditions
IP 65
GTiN
03389110905120
Product UPC
78590137320
Weight
0.02 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
