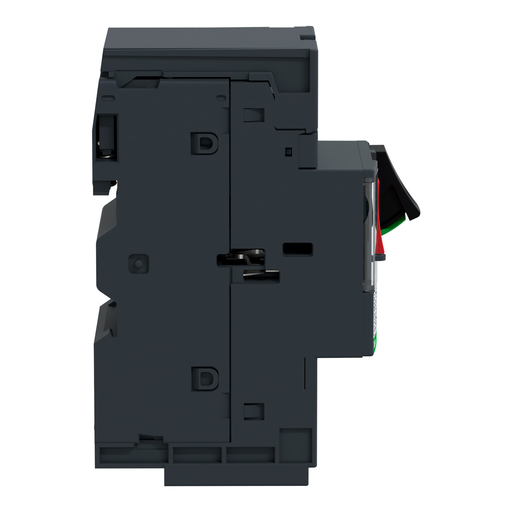

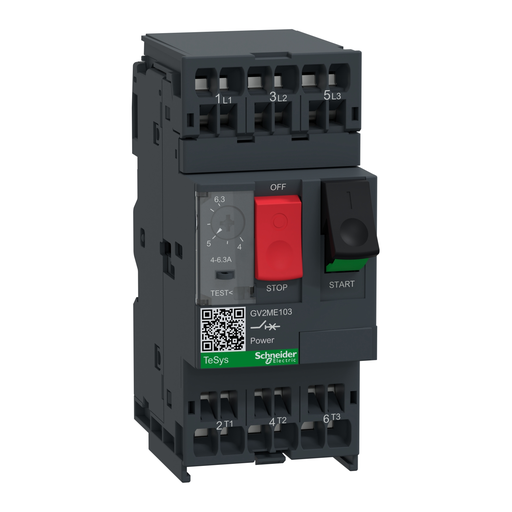

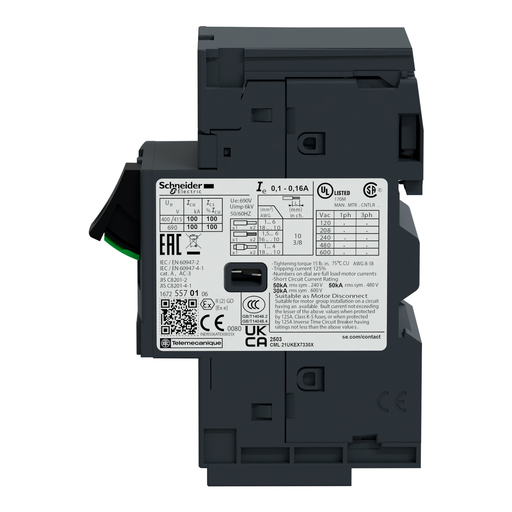

Product image for Square D GV2ME103 6.3 Amp 600 VAC IEC Manual Starter
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D GV2ME103 6.3 Amp 600 VAC IEC Manual Starter

Manufacturer: Square-D / Schneider | Catalog # GV2ME103 | Echo Electric Part # 137047
$243.86/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
6.3 Amp
Applications
MOTOR
Control Type
Push-button
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
6.3 A
Net Weight
0.28 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 4.0A TO 6.3A
Size
101 MM,45 MM,78.5 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SPRING TERMINALS 2 1-6 MMA SOLID- SPRING TERMINALS 2 1.5-4 MMA FLEXIBLE WITHOUT CABLE END
Trip Point
78-78 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV2ME,TESYS,TESYS GV2

General Product Info

12-Digit UPC
389110346445
Color
Gray
GTiN
03389110346442
Product UPC
78590121215
Weight
0.28 kg

Dimensions

Depth
78.5 mm
Height
101 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GVAD1010
  • GVAE113
  • GVAD1001
  • GVAU385
  • GV2AF02
  • GVAS225
  • GVAU225
  • LAD311
  • LAD341
  • LAD31
  • GVAX385
  • GVAN113
  • GVAE203
  • LAD351
  • LAD324
  • GVAX225
  • GVAS385
  • LAD3B1
  • GVAU115
  • LAD322
  • LAD352
  • GVAX115
Cross Sell Products
  • LC1D093BD
  • LC1D093P7
  • LC1D093B7
  • LC1D093F7
