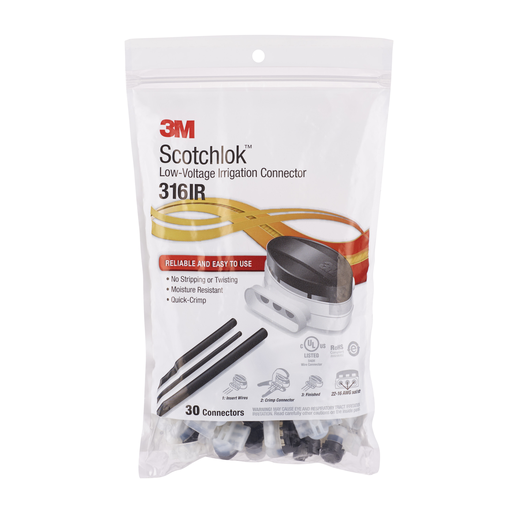

3M 316-IR BAG 30/Bag Low Voltage Irrigation Connector

Manufacturer: 3M | Catalog # 7000058271 | Echo Electric Part # 138231
$142.04/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

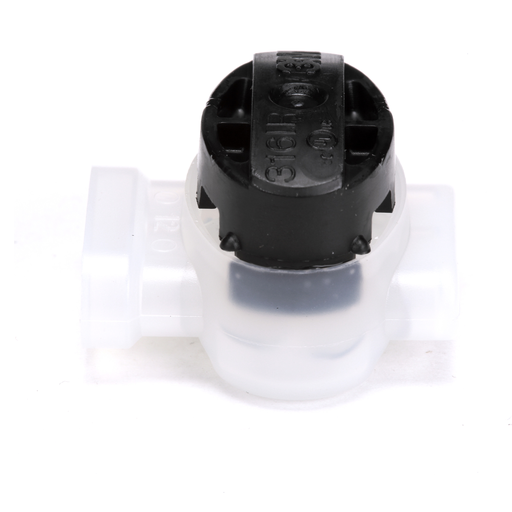

3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a (tap) wire end to a through (run) wire, and insulates the connection. It has a maximum insulation O.D. diameter of 0.120 inches (3.05 mm) and an operating temperature of 221 degrees Fahrenheit (105 degrees Celsius). The suggested application tool for this connector is the 3M™ Scotchlok™ Crimping Tool, E-9BM.

Technical Information

Conductor Size
16 AWG
Connection Type
Pigtail
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Size
22 - 16 AWG
TC Connection
Pigtail

Manufacturer Information

Brand
Scotchlok

General Product Info

12-Digit UPC
054007504191
Color
Black,White
GTiN
00054007504191
Product Type
Connectors
Product UPC
05400750419

Certifications and Compliance

Country of Origin
USA
Features
  • Mineral oil-based grease creates a moisture-resistant seal

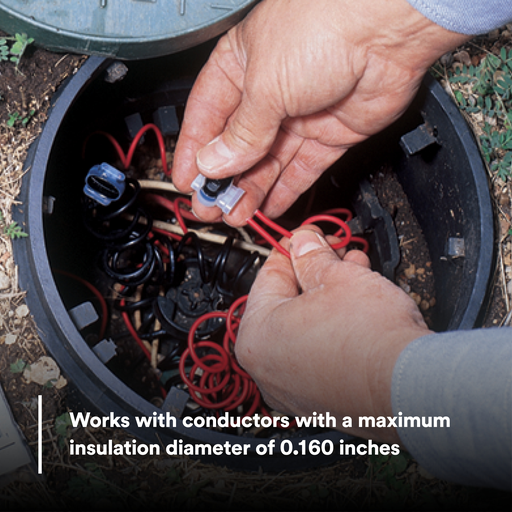

  • Ideal for low energy underground circuit wires, sprinkler systems, irrigation and landscape lighting
  • Accommodates 16-14 AWG solid/stranded, 12 stranded (outer) & 18 solid/stranded, 20 stranded (inner)
  • C UL Listed and RoHS 2011/65/EU Compliant
  • Operating temperature 221F (105C)
  • 600 volts maximum
