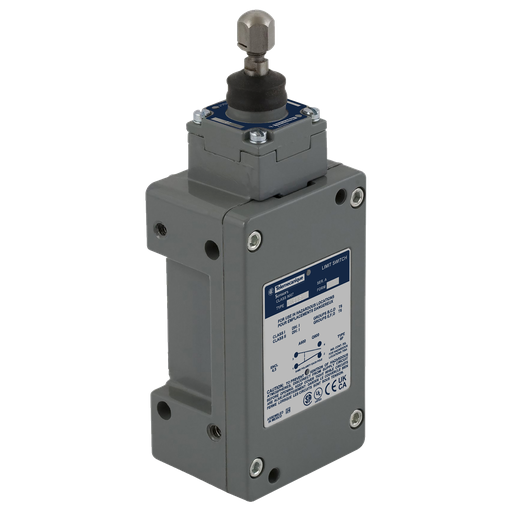

Product image for TES 9007CR53ED Limit switch, 9007, 600 V 10amp c +options
Email

TES 9007CR53ED Limit switch, 9007, 600 V 10amp c +options

Manufacturer: TESENSOR | Catalog # 9007CR53ED | Echo Electric Part # 138556
$727.54/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, 9007, 600 V 10amp c +options

Technical Information

Action
Snap action;On end
Actuator
STAINLESS STEEL SPRING RETURN PLUNGER ADJUSTABLE)
Amperage
10 Amp
Applications
Hazardous location box
Body Material
Aluminium
Body Type
Fixed
Contact Configuration
NC-NO
Contact Material
Silver
Contact Rating
NEMA A600/Q600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Plunger head
Material
Metal
Net Weight
2.5 lb
Number of Poles
1 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F HAZARDOUS LOCATION
Size
2.08 in
Storage Temperature
-20-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
Limit switch
Voltage
1.2 A 600 Volt AC, A600 NEMA-1.5 A 480 Volt AC, A600 NEMA-3 A 240 Volt AC, A600 NEMA-6 A 120 Volt AC, A600 NEMA-0.1 A 600 Volt DC, Q600 NEMA-0.27 A 250 Volt AC, Q600 NEMA-0.55 A 125 Volt DC, Q600 NEMA

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007CR

General Product Info

12-Digit UPC
785901047292
Environmental Conditions
HAZARDOUS LOCATION
GTiN
00785901047292
Product UPC
78590104729

Dimensions

Depth
2.08 Inch
Height
7.11-7.11 Inch
Warranty Length
18 mth
Width
2.72 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
