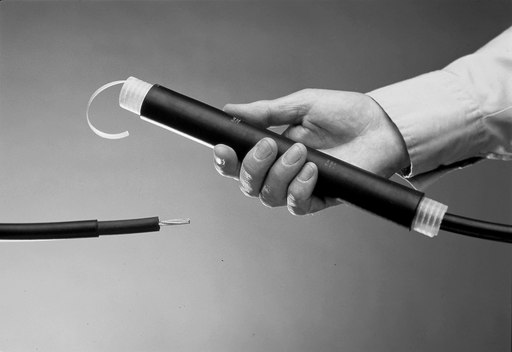

Product image for 3M 7000140702 3M™ Cold Shrink Inlin
Email

3M 7000140702 3M™ Cold Shrink Inlin

Manufacturer: 3M | Catalog # 7000140702 | Echo Electric Part # 140093
$38,791.02/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
The 3M™ Cold Shrink Splicing Products are designed using the proprietary cold shrink delivery system developed by 3M. Products are supplied prestretched on a removable core for efficiency and ease of installation. 3M™ Cold Shrink Splices 5740 Series are used for single conductor, non-shielded 5/8 kV cables. Each kit is a cold shrink design and contains enough material to insulate three splices. Connectors are not included and must be ordered separately. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Technical Information

Applications
For Splicing Non-Shielded, Wet/Dry Solid Dielectric Power Cables
Cable Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 4/0 AWG
Conductor Size
2 AWG-300 kcmil
Number of Conductors
1
Splice Type
Inline
Type
Inline Splice
Voltage
5 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007494928
GTiN
00054007494928
Product Series
5740 Series
Product Type
Splice
Product UPC
05400749492
Used With
10000, 11000 and 20000 Series Inline Compression Connectors

Dimensions

Length
12 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Designed for use with 10000, 11000 and 20000 Series inline compression connectors
  • The rubber mastic filler removes time-consuming penciling of cable insulation
  • Perfect for splicing non-shielded, wet/dry solid dielectric power cables
  • Rated for 5/8 kV applications
  • RoHS 2011/65/EU Compliant
