Panduit CC5E88IW Mini-Com® Cat 5e UTP R

Manufacturer: Panduit Corp | Catalog # CC5E88IW | Echo Electric Part # 140107
$46.27/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual

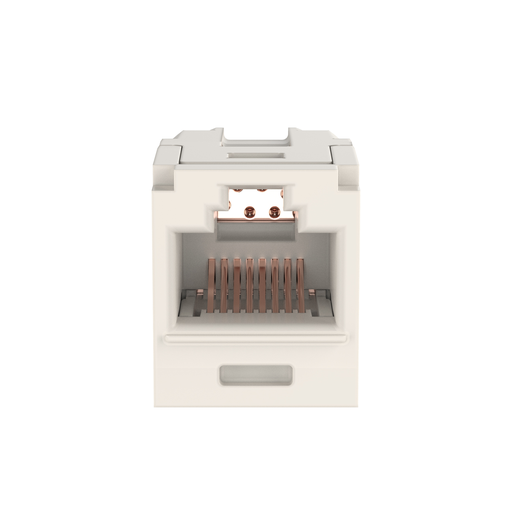

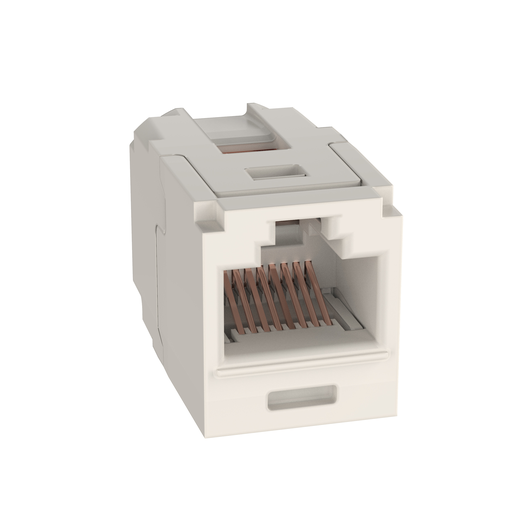

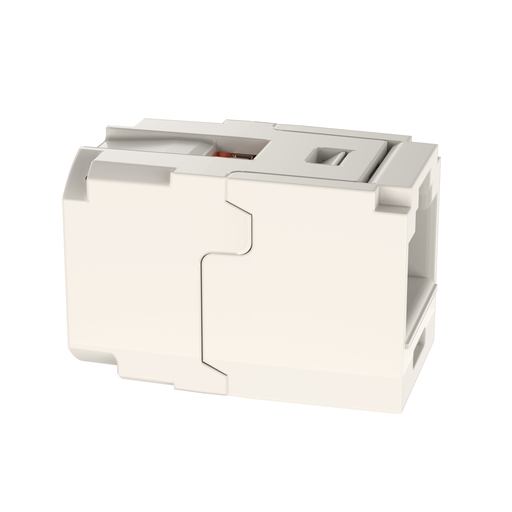

The Mini-Com® Cat 5e UTP RJ45 Coupler Module is designed and 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is off white.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Performance Level
Category 5e
Type
Jack Module

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Net®

General Product Info

12-Digit UPC
074983344475
Color
White
GTiN
00074983344475
Product UPC
07498334447

Dimensions

Depth
1.09 Inch
Height
0.71 Inch
Overall Length
1.09 in
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
