HWDK HBL28W48 PLUG, NEMA L6-30P, 30

Manufacturer: Hubbell Wiring Device | Catalog # HBL28W48 | Echo Electric Part # 140326
$78.63/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Plug, 30A, 250V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-30P, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S Min, 8/3 S, 8/4 S, 10/5 S Max AWG
Contact Material
Nickel Plated Brass
Cord Size
3/8 - 1 in
Cord Type
SJ, S
Current
30 Amp
Dielectric Strength
2500 VAC
Material
Thermoplastic

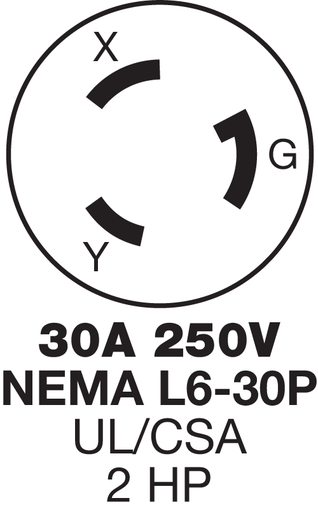

NEMA
L6-30P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

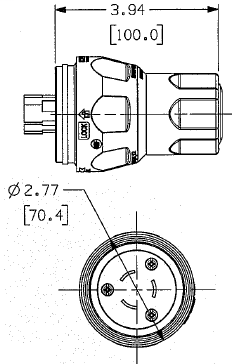

2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Industrial Grade
Voltage
250 Volt
Wire Count
3
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131443
Color
Yellow
Environmental Conditions
Watertight
GTiN
00783585131443
Product UPC
78358513144

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
