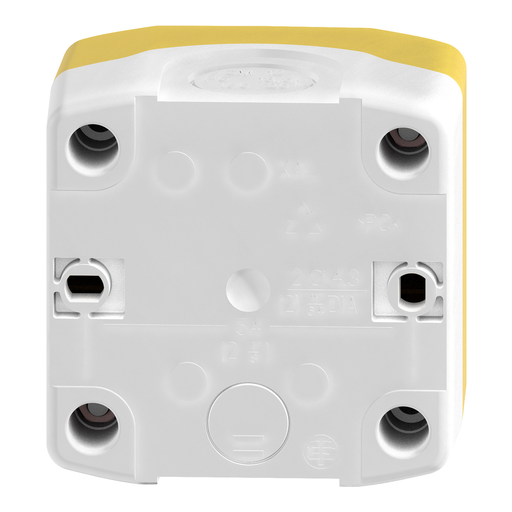

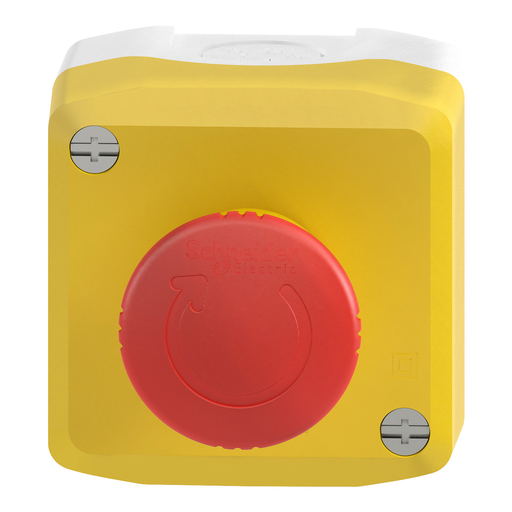

Square D XALK178F 22 mm 600 VAC 10 Amp Mushroom Head Push Button

Manufacturer: Square-D / Schneider | Catalog # XALK178F | Echo Electric Part # 140798
$335.25/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.

Technical Information

Actuator
1 MUSHROOM HEAD PUSH-BUTTON,1 MUSHROOM HEAD Ø 40 MM PUSH-BUTTON, RED 2 NC UNMARKED,RED UNMARKED 2 NC
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications
FOR XB5 Ø 22 MM CONTROL AND SIGNALLING UNITS
Cable Entry
0-14 mm
Contact Material
Silver Alloy
Enclosure
NEMA 13-NEMA 4X
Material
Polycarbonate
Net Weight
0.194 kg
Operating Force
44 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60204-1,IEC 60364-5-53,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850,JIS C 4520,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
COMPLETE CONTROL STATION

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALK

General Product Info

12-Digit UPC
389110113641
GTiN
03389110113648
Product UPC
78590168072
Weight
0.194 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Czechia
