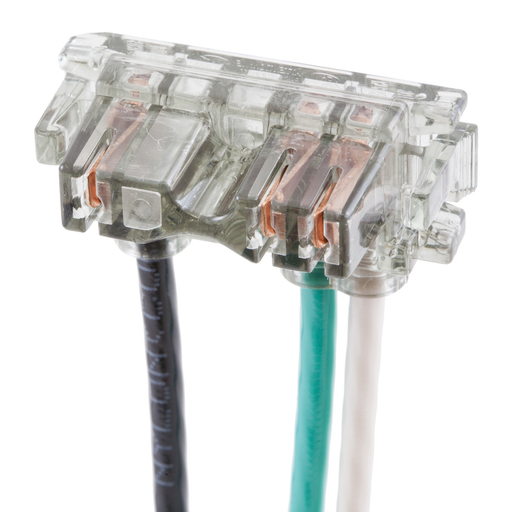

Product image for Hubbell SNAP2RNA 6 Inch 12 AWG Stranded Lead Clear Polycarbonate Right Angle Pigtailed Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell SNAP2RNA 6 Inch 12 AWG Stranded Lead Clear Polycarbonate Right Angle Pigtailed Terminal

Manufacturer: Hubbell Wiring Device | Catalog # SNAP2RNA | Echo Electric Part # 141200
$4.59/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, SNAP-CONNECT Connector, SNAP-CONNECT Series, 2-Pole 3-Wire Grounding, 20A 125V, Stranded, Right Angled, Clear terminal with 6-inch leads, USA

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty;Quick Connection
Conductor Size
12 AWG
Current
15-20 Amp
Flamability Class
UL 94V-2
Material
Polycarbonate
Number of Conductors
3-Wire Grounding
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.48 in x 0.78 in x 0.63 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
TC Connection
Screw Terminals
Temperature Rating
Maximum Continuous: 75?degrees C; Minimum Continuous: -40?degrees C w/o impact, -25?degrees with impact.
Type
Pigtailed Connector
Voltage
125 Volt
Wire Count
3
Wire Size
12 AWG
Wire Type
Stranded

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585251974
Color
Clear
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585251974
Product Series
Extra Heavy Duty
Product UPC
78358525197
Weight
0.05 lb

Dimensions

Height
0.79 Inch
Length
1.48 Inch
Width
0.78 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Transparent housing to inspect contacts
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Performance
  • Electrical: Current Interrupting- Certified for current interrupting at full rated current
  • Electrical: Dielectric Voltage- Withstands 2,000V minimum
  • Mechanical: Product Identification Ratings are a permanent part of the device
  • Environmental: Flammability- UL 94V-2
  • Environmental: Operating Temperature- Maximum continuous 75°C, minimum -40°C (w/o impact)
