FLK FLUKE-3540-FC-KIT 3PHASE PWR MO

Manufacturer: Fluke | Catalog # FLUKE-3540-FC-KIT | Echo Electric Part # 141870
$4,478.23/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet

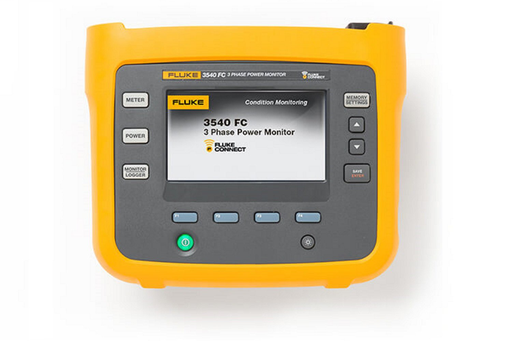

3540 FC Three-Phase Power Monitor and Condition Monitoring Kit is a combination of the 3540 FC Three-Phase Power Monitor and Fluke Connect® Condition Monitoring software. The 3540 FC Three-Phase Power Monitor is a compact device used to monitor key electrical parameters for three-phase machinery and seamlessly streams data to the Fluke Connect® Cloud. Once in the cloud, the software allows maintenance teams to remotely view data anytime, anywhere.

Technical Information

Operating Temperature
0 To 45 degrees C
Storage Temperature
-20 To 50 degrees C

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969863025
GTiN
00095969863025
Product UPC
09596986302
Weight
2.5 lb

Dimensions

Warranty Length
2 yr
Key Features
  • Measures:
  • Single, split, or three phase loads
  • Voltage, current, and frequency
  • Active power, non-active power, and power factor
  • Total harmonic distortion
  • Wireless data collection or internal memory sufficient for 1 week with 1 second data intervals
  • Remotely monitor real-time and historical power variable data
  • Visualize data with software trending, graphing, and timeboxing
  • Auto-generated alarms when power variables deviate from pre-set thresholds
  • Power options: Battery, power supply, or power from the measurement line
  • Size: (W x H x D) 7.8 in. x 6.6 in. x 2.2 in.
  • IP Rating: IP 50; IEC 60529

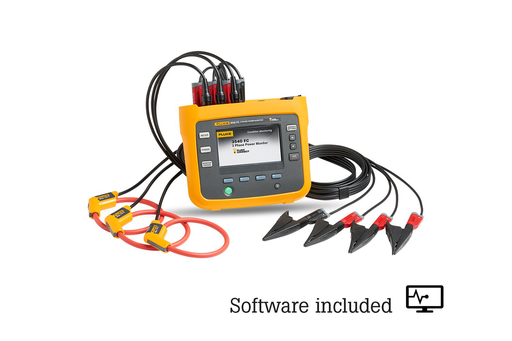

Includes
  • 1 Fluke 3540 FC Three-Phase Power Monitor
  • Voltage Test Lead, 3-phase + N
  • 4x Dolphin Clips, Black
  • 3x i173x-flex1500 iFlex Current Probe, 30.5 cm (12 in)
  • Set of color-coded Wire Clips
  • Mains Power Cable
  • Set of 2 test leads with stackable plugs, 10 cm (3.9 in)
  • Set of 2 test leads with stackable plugs, 1.5 m (6.6 ft)
  • DC Power Cable
  • Input Connector Decal (see Figure 5)
  • 4 GB USB Flash Drive (includes firmware updates, and Open Source software)
  • WiFi to USB Adapter
  • Magnet Hanger Kit
Other Useful Features
  • Portable device offers scalable, remote power monitoring solution
  • View power measurements from a safe distance
  • Wirelessly collect real-time power values
  • Make data-driven decisions
Product Overview
  • The Fluke 3540 FC monitors equipment for changes in key electrical variables. Current, voltage, frequency, and energy consumption fluctuate when machinery experiences excess load. Screen assets for performance or premature wear using the non-invasive 3540 FC.
  • See \"Model\" tab for kit options.
  • Fluke 3540 FC Three-Phase Power Monitor and Condition Monitoring Kit
