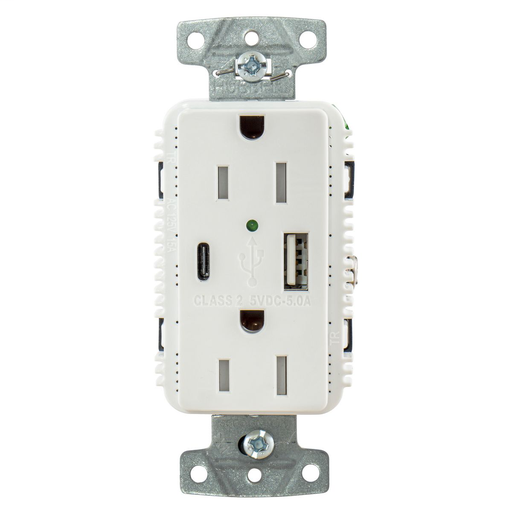

Product image for Hubbell USB15AC5W Receptacle DUP 15A 125V 5A 5V USB PORT AC WH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell USB15AC5W Receptacle DUP 15A 125V 5A 5V USB PORT AC WH

Manufacturer: Hubbell Wiring Device | Catalog # USB15AC5W | Echo Electric Part # 142628
$75.69/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
2 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 1) 5A "C" USB and "A" Ports, White

Technical Information

Amperage
15 Amp
Applications
For USB Charging/Power
Conductor Size
14-12 AWG
Connection Type
Back and Side
Contact Material
Brass
Grade
Commercial
Grounding
Grounding
Material
Nylon
Mounting Type
Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Style
Style Line Decorator
TC Connection
Terminal Screws
Temperature Rating
75degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
USB Charger, Duplex
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778307171
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00883778307171
Product UPC
88377830717
Features
  • High Power 5 Amp, 5 Volt USB Output
  • Combination Ports, One Type A, One Type C
  • Tamper Resistant Commercial Grade Duplex Compatible
  • USB Ports Rated 10,000 Cycles
