Product image for NVENT HOF PTHS242436G4 PROTEK DH So
Email

NVENT HOF PTHS242436G4 PROTEK DH So

Manufacturer: nVent Hoffman | Catalog # PTHS242436G4 | Echo Electric Part # 143877
$2,929.67/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet

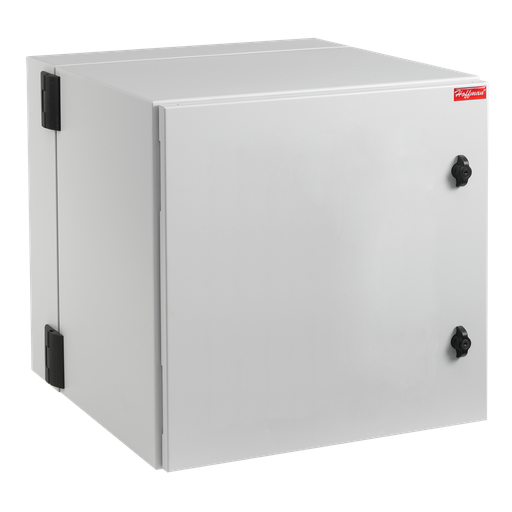

ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Solid Type 4 12, PTHS242436G4 item measures 24.09x23.62x36.02in. with a material of Steel colored LtGray.

Technical Information

Applications
Datacom and Telecom Equipment; Networking, Storage and Data Center; Controls and Drives
Body Thickness
1.9 mm
Color Coding
RAL 7035
Material
Stainless Steel
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProTek

General Product Info

12-Digit UPC
783510291075
Color
RAL 7035 Gray
Finish
Powder Coated
GTiN
00783510291075
Product UPC
78351029107
Weight
127 lb

Dimensions

Depth
36.02 Inch
Height
24.09 Inch
Length
42 Inch
Width
23.62 in
Features
  • Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
  • Solid door provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
