PHNX 0800388 WMS 4 8 (30X9)RL

Manufacturer: Phoenix Blocks | Catalog # 0800388 | Echo Electric Part # 143934
$736.50/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

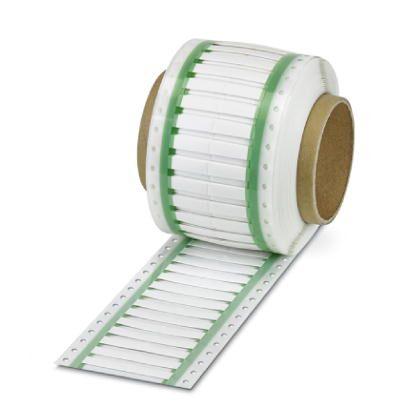

Shrink sleeve, Roll, white, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL: without print, perforated, mounting type: slide-on, cable diameter range: 1.6 ... 4.8 mm, lettering field size: 30 x 9 mm, Number of individual labels: 2000

Technical Information

Material
Polyolefin
Mounting Type
Slide-On
Temperature Rating
-55 to 125 degrees C
Type
Halogen-Free, Unlabeled

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
463566265526
Color
White
Product UPC
46356626552
Used With
Thermomark E.300 (D)/600 (D), Thermomark Rollmaster 300/600, Thermomark Roll X1, Thermomark Roll, Thermomark Roll 2.0, Thermomark W and Thermomark X1.2 Thermal Transfer Printer

Dimensions

Length
30 mm
Width
9 mm
Features
  • UL 224 (125°C, 600 V, all tubing)
  • CSA.C22.2 No. 198.1 (125°C, 600 V, all tubing)
  • The sleeves are pre-assembled for optimum use of material
  • The conductor to be marked is simply threaded through the sleeve and fixed by shrinking the sleeve
  • The sleeves remain flexible after shrinking
  • The shrink sleeves provide additional electrical insulation and mechanical protection for the conductors
  • Up to four markers per sleeve are separated by perforations
Approvals
  • CSA
  • UL Recognized
