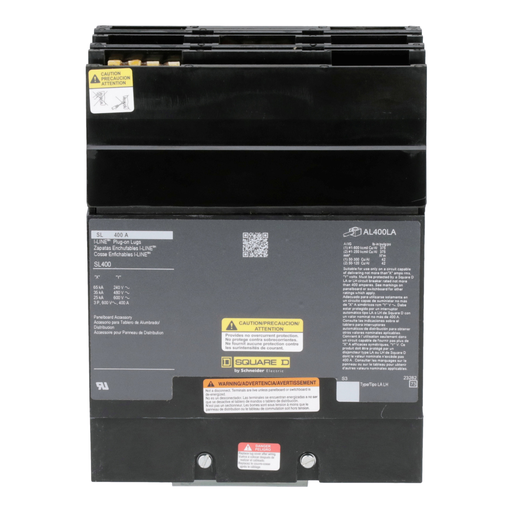

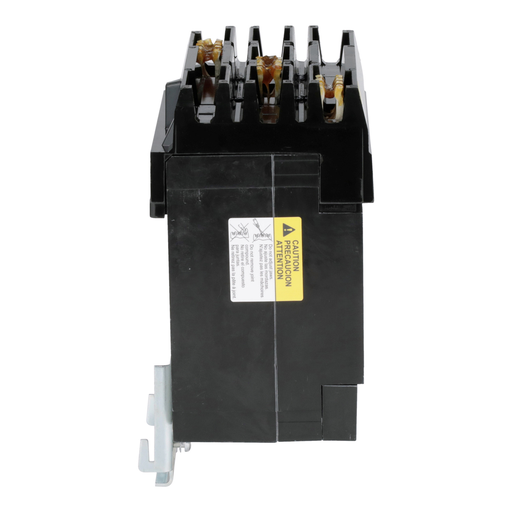

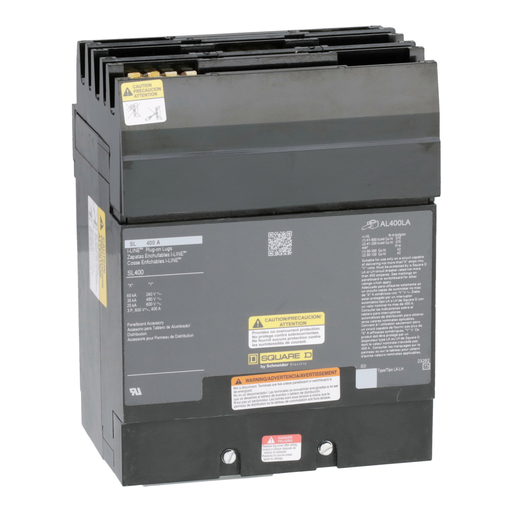

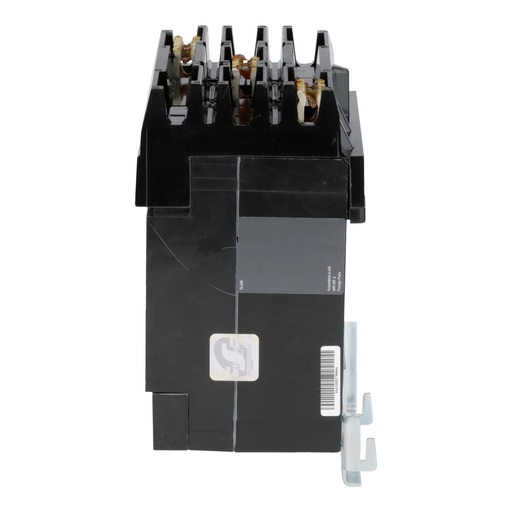

Product image for Square D SL400 3-Pole 400 Amp 1 AWG to 600 MCM or 1 AWG to 250 MCM Panelboard Sub Feed Lug Kit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D SL400 3-Pole 400 Amp 1 AWG to 600 MCM or 1 AWG to 250 MCM Panelboard Sub Feed Lug Kit

Manufacturer: Square-D / Schneider | Catalog # SL400 | Echo Electric Part # 144191
$803.93/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This is a connection accessory for I-Line Panelboards. This is a plug-on subfeed lug kit for I-Line panelboards for PowerPact L-Frame, LA-LH circuit breakers. This has a amperage rating of 400 amps. The frame size 400 amp. The lug accepts (1) #1-600 kcmil, (2) #1-250 kcmil, Al/Cu. This product complies with UL standards.

Technical Information

Amperage
400 Amp
Applications
PANELBOARD HCP 2184 MM 1067 MM-PANELBOARD HCP-SU 2184 MM 660 MM
Line Rated Current
400-400 A
Size
5.98 in
TC Connection
(1)#1 TO 600 AWG/KCMIL(AL/CU)
Type
Sub-feed lug

Manufacturer Information

Brand
Square D
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
785901009832
GTiN
00785901009832
Product UPC
78590100983

Dimensions

Length
152 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HCP14504
  • HCP50864
  • LH26400AC
  • HCP50866
  • HCP50868
  • HCP32688
  • HCP32686
  • HCP32684
  • HCP23598
  • HCP23596
  • HCP23594
  • HCP14508
  • HCP14506
  • HCP54868SU
  • HCR548612U
