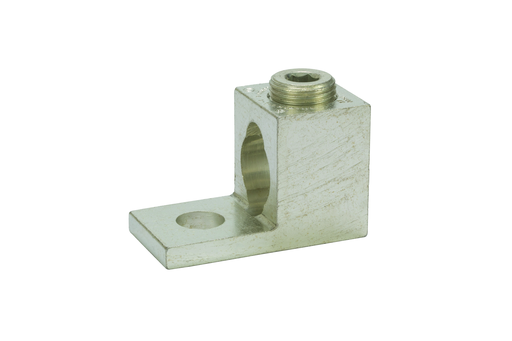

Product image for NSI BS400T 9/16 Inch 4 AWG to 600 MCM/1/0 AWG to 250 MCM Tinned Aluminum 3-Conductor Dual Range Lug
Email

NSI BS400T 9/16 Inch 4 AWG to 600 MCM/1/0 AWG to 250 MCM Tinned Aluminum 3-Conductor Dual Range Lug

Manufacturer: NSi | Catalog # BS400T | Echo Electric Part # 144493
$38.34/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
Dual Range Lug One 600 MCM - 4 AWG, Two 250 MCM - 1/0 AWG - 1 Count Dual Range Lugs are set screw connectors that will accept either one or two wires. Made of 6061T-6 aluminum alloy. Electro-pin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 Volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Bolt Size
9/16 IN
Conductor Size
1/0 AWG-250 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
1
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
1
Standard
UL486B
Temperature Rating
90 degrees C
Type
Aluminum Dual Range Lug
Voltage
600 Volt
Wire Size
0 AWG-250 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381002006
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381002006
Product UPC
66238100200

Dimensions

Height
1.81 Inch
Length
2.81 Inch
Warranty Length
1 yr
Width
1.38 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • CSA
  • UL Listed
  • UL 486A-486B
Features
  • Set-screw connectors that will accept either one or two wires
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • UL Listed Wire Connector
