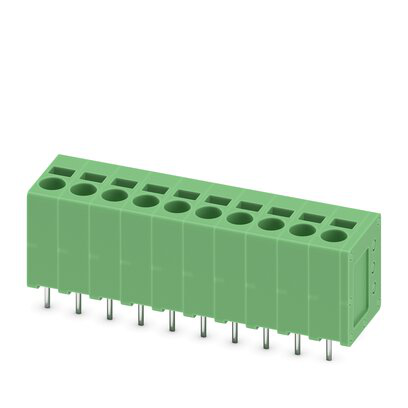

Product image for PHNX 1991176 SPT 2 5/10-V-5 0
Email

PHNX 1991176 SPT 2 5/10-V-5 0

Manufacturer: Phoenix Blocks | Catalog # 1991176 | Echo Electric Part # 144682
$6.24/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: SPT 2,5/..-V, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Technical Information

Mounting Type
Wave Soldering
Number of Connections
10
Number of Rows
1
Strip Length
10 mm

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
463561047912
Color
Green
Product UPC
46356104791

Dimensions

Height
16.9 mm
Length
13.5 mm
Width
51.4 mm
Features
  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Clamping space opened by means of fixed screwdriver enables convenient conductor connection
  • Operation and conductor connection from one direction enable integration into front of device
  • Two solder pins reduce the mechanical strain on the soldering spots
Approvals
  • EAC
  • SEV
  • IECEE CB Scheme
  • cULus Recognized
