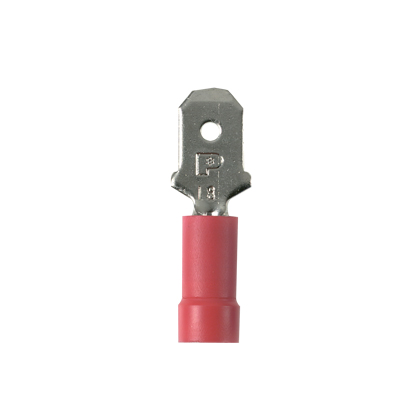

Product image for Panduit DV18-250MB-CY 22 to 18 AWG Red Vinyl Barrel Insulated Funnel Entry Male Disconnect
Email

Panduit DV18-250MB-CY 22 to 18 AWG Red Vinyl Barrel Insulated Funnel Entry Male Disconnect

Manufacturer: Panduit Corp | Catalog # DV18-250MB-CY | Echo Electric Part # 145358
$205.20/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
200 available

For Delivery

Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
Copper
Max Operating Temperature
105 degrees C
Tab Size
1/4 x 0.032 in
TC Connection
funnel Entry
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983685622
Color
Red
Finish
Nickel
GTiN
00074983685622
Product UPC
07498368562
UNSPSC
39121409

Dimensions

Overall Length
0.98 in
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
