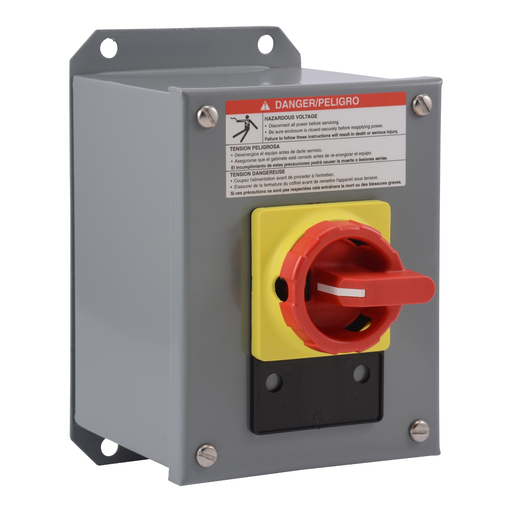

Product image for Square D 9421V1A30 600 VAC 20 Amp 10 Hp 3-Pole NEMA 12 Load Break Switch
Email

Square D 9421V1A30 600 VAC 20 Amp 10 Hp 3-Pole NEMA 12 Load Break Switch

Manufacturer: Square-D / Schneider | Catalog # 9421V1A30 | Echo Electric Part # 145549
$207.20/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Vario manual motor control switches meet UL508 requirements as both enclosed and open manual motor controllers. They are also marked “Suitable as Motor Disconnect” allowing installation on the load side of the motor branch circuit short circuit and ground fault protection. These manual motor control switches include switches mounted in enclosure with a handle. The switch has a 20A current rating and a 5 HP at 240 V, 10 HP at 480V and a 10 HP at 600V ratings per UL508. The switch has a 32A current rating and a 5.5 kW at 230V and 240 V, 11 kW at 400V 415V and 500V and a 15 kW at 690V ratings per IEC. A KCD1YZ low profile handle is used for this device. This 60 mm by 60 mm single hole handle assembly has a red handle and yellow bezel. This switch is mounted in a metallic NEMA Type 12 enclosure. This manual motor control switch is 7.38 inches tall, 5.50 inches wide and 6.25 inches deep. This switch has no auxiliary contacts. This manual motor control switch is UL Listed and CSA certified.

Technical Information

Amperage
20 Amp
Applications
5-5 HP 240 V AC-10-10 HP 480/600 V AC
Contact Configuration
Without
Enclosure
NEMA 12,DUST AND DAMP PROOF ENCLOSURE INDOOR,METALLIC METAL
Enclosure Material
Metal
Enclosure Type
Dust And Damp Proof Enclosure Indoor
Line Rated Current
20 A
Lock Type
Padlockable
Mounting Type
Surface
Size
5.5 IN,6.25 IN,7.38 IN
Type
DUST AND DAMP PROOF ENCLOSURE FOR INDOOR
Voltage
600 VAC

Manufacturer Information

Brand
Square D
Sub Brand
VARIO

General Product Info

12-Digit UPC
785901058908
Color
Red,Yellow
GTiN
00785901058908
Product UPC
78590105890

Dimensions

Depth
6-1/4 Inch
Height
7.38 Inch
Warranty Length
18 mth
Width
5.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR81630 Class 3211 05,UL Listed File E164864 CCN NLRV
Country of Origin
Mexico
