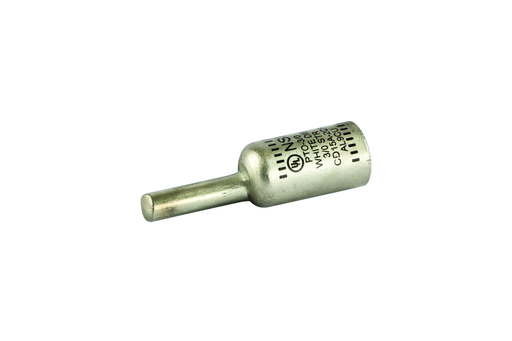

Product image for NSI PTO-3/0 3/0 AWG White Tinned Aluminum 1-Conductor Offset Pin Terminal
Image thumbnail 0
Image thumbnail 1
Email

NSI PTO-3/0 3/0 AWG White Tinned Aluminum 1-Conductor Offset Pin Terminal

Manufacturer: NSi | Catalog # PTO-3/0 | Echo Electric Part # 146128
$5,516.90/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Offset Pin Terminal 3/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
3/0 AWG
Connection Type
1/0 Pin
Insulation Material
Plastisol Cover
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
1
Number of Poles
1 Pole
Size
L=2.80 - OD=.850 - ID=.500 - Pin Dia=.370
Standard
UL486
TC Connection
1/0 Pin
Temperature Rating
90 degrees C
Type
Offset Pin
Voltage
600 Volt
Wire Size
000 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Pin Terminals

General Product Info

12-Digit UPC
662381033215
Color
White
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381033215
Product UPC
66238103321

Dimensions

Height
0.85 Inch
Length
2.8 Inch
Warranty Length
1 yr
Width
0.85 in

Certifications and Compliance

Country of Origin
India
Certifications and Standards
  • UL Listed
  • UL 486A-486B
Features
  • All-aluminum pin terminal designed for termination of both aluminum and copper conductors
  • Pin is offset for use in tight applications while providing ease of installation in side by side applications
  • The solid pin is made of aluminum and is Tin-plated and pre-filled with oxide inhibitor
  • Great for paralleling cable
  • A cover is provided for quick insulation
