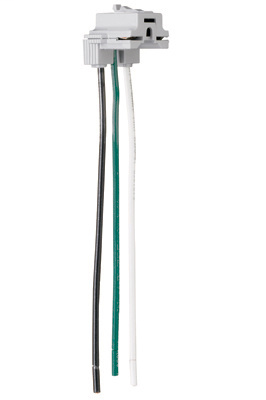

Product image for Pass & Seymour PTRA6-STR 6" Stranded PlugTail Connector, Right Angle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PTRA6-STR 6" Stranded PlugTail Connector, Right Angle

Manufacturer: Pass & Seymour / Legrand | Catalog # PTRA6-STR | Echo Electric Part # 146287
$2.79/ea
ea
Log in or register to view your price, purchase history, and more!
101 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
1,874 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
PlugTail® Connectors Right Angle Stranded 6""For detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Applications
Commercial
Conductor Size
12 AWG
Dielectric Strength
2000 V
Grade
Commercial
Material
Polycarbonate
Mounting Type
Device, Wall
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
7.5 In
Temperature Rating
-40 to 60 degrees C without Impact
Type
Right Angled
Wire Length
6 in
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007044546
Color
Gray
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00785007044546
Product Series
PlugTail
Product UPC
78500704454
UNSPSC
39121406

Dimensions

Length
6 Inch

Certifications and Compliance

Certifications
CULUS,UL
Country of Origin
China
Features
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, stranded, for use with PlugTail Receptacles only
Certifications
  • UL Listed
  • cULus Listed
