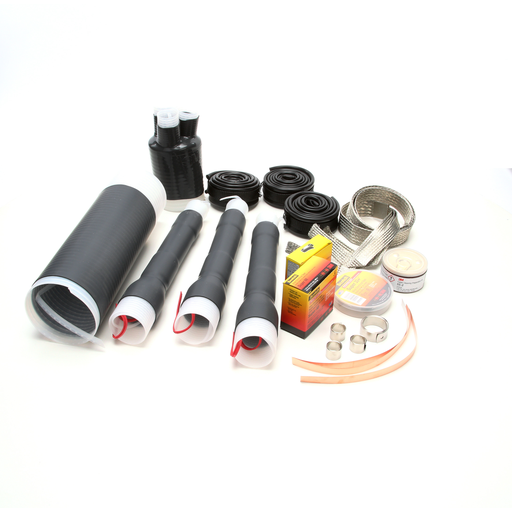

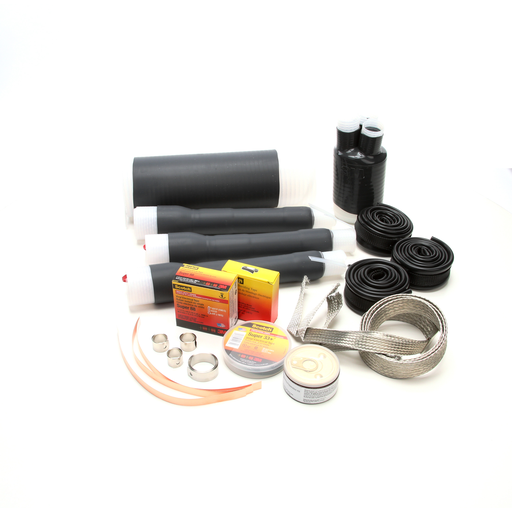

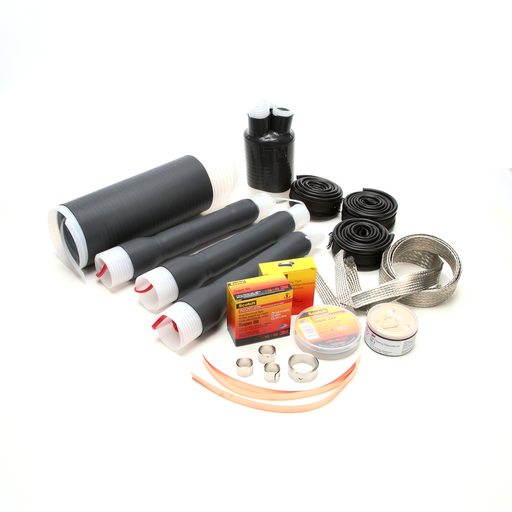

3M 7622-T-110-3G Indoor 3 Conductor Cables Termination Kit with Ground Wires

Manufacturer: 3M | Catalog # 7000031661 | Echo Electric Part # 146551
$158,327.69/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7600-T-3G is tubular and designed for cables with internal ground wires for indoor installations. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.

Technical Information

Applications
Indoor
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG
Indoor Outdoor
Indoor Non-skirted
Number of Conductors
3
Type
QT-III
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007436706
GTiN
00054007436706
Product Series
7600-T-3G
Product UPC
05400743670

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
