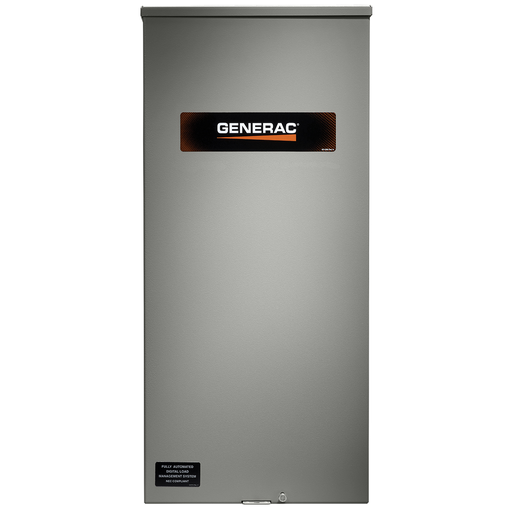

Product image for Generac RXSC200A3 Automatic Smart Transfer Switch, 200A 120/240V, 1-Phase, Open Transition, 10,000A Withstand Rating
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Generac RXSC200A3 Automatic Smart Transfer Switch, 200A 120/240V, 1-Phase, Open Transition, 10,000A Withstand Rating

Manufacturer: Generac Power Systems Inc | Catalog # RXSC200A3 | Echo Electric Part # 146954
$931.68/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Generac Automatic Transfer Switches are designed for use with single phase generators that utilize and Evolution or Nexus Controller. The 100, 200, and 400 amp open transition switches are available in single phase in both service equipment trated and non-service equipment rated configurations. The 150 and 300 amp open transition switches are only available in a service rated equipment configuration.

Technical Information

Amperage
200 Amp
Conductor Size
6 AWG-250 kcmil
Number of Poles
2 Pole
Power Rating
48000 W
Type
Automatic
Voltage
120 Volt
Wire Size
6 AWG-250 kcmil

Manufacturer Information

Brand
Generac Power Systems, Inc.

General Product Info

12-Digit UPC
696471069617
Color
Gray
GTiN
00696471069617
Housing Material
Aluminum
Product UPC
69647106961
Used With
Single Phase Generators that Utilize an Evolution or Nexus Controller
Weight
20 lb

Dimensions

Height
20 Inch
Warranty Length
5 yr
Width
12.5 in

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
USA
Features
  • Smart Switch 200 Amp 1Ø NEMA 3R CUL
  • Generac automatic transfer switches are housed in an aluminum NEMA/UL type 3R enclosure, with electrostatically applied and baked powder paint
  • Heavy duty Generac contactor is a UL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
  • Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware
  • When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available
  • Cycles power on and off as needed for different appliances
  • Switch is covered by a 5 year limited warranty
  • Single-phase, 120/240-volt; UL listed transfer switch
Certifications and Standards
  • UL Listed
