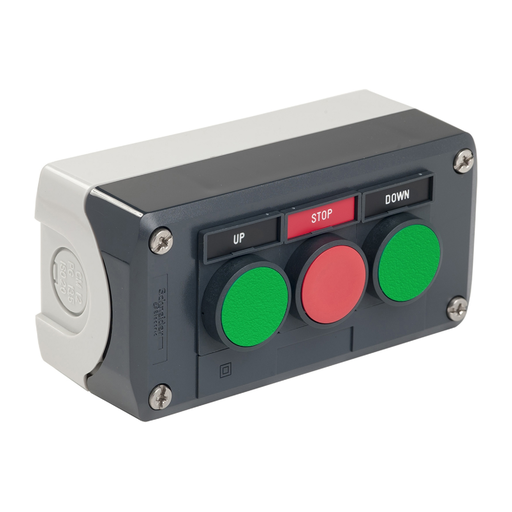

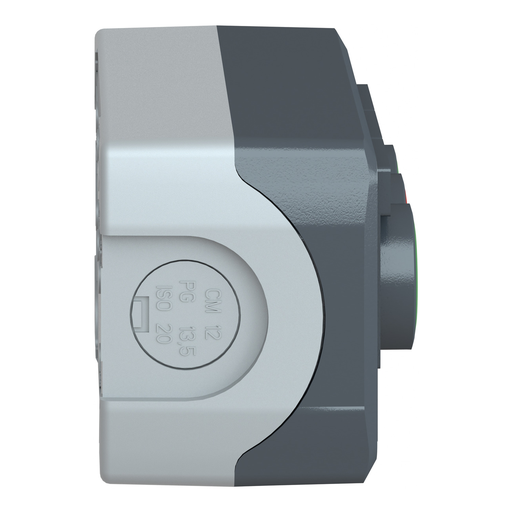

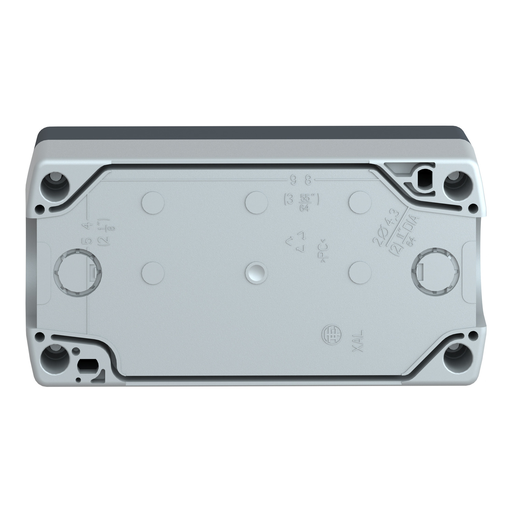

Square D XALD321H29H7 600 VAC 300 VDC 10 Amp 2NO 1NC Polycarbonate Push Button Control Station

Manufacturer: Square-D / Schneider | Catalog # XALD321H29H7 | Echo Electric Part # 146964
$197.70/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XALD yellow control station with 3 functions is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with 3 push buttons for 3 functions enables machine builders to easily add required control and signalling functionality on their machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Technical Information

Actuator
1 FLUSH PUSH-BUTTON, RED 1 NC O-1 FLUSH PUSH-BUTTON, GREEN 1 NO DOWN-1 FLUSH PUSH-BUTTON, GREEN 1 NO UP
Amperage
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications
Three functions;For XB5 22 mm control and signalling units
Cable Entry
14-14 mm
Contact Material
Silver Alloy
Contact Rating
Slow-break
Enclosure
Polycarbonate
Material
Polycarbonate
Net Weight
0.299 kg
Operating Force
3.5 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Complete control station;Green ''UP'' 1 NO - red ''O'' 1 NC - green ''DOWN'' 1 NO

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALD

General Product Info

12-Digit UPC
389119414275
Color
DARK GREY RAL 7016)
GTiN
03389119414272
Product UPC
78590101592
Weight
0.299 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
USA
Compatible Products
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Cross Sell Products
  • XB5AA31
Spare Part Products
  • XB5AL42
  • XB5AA31
  • XALD03H7
