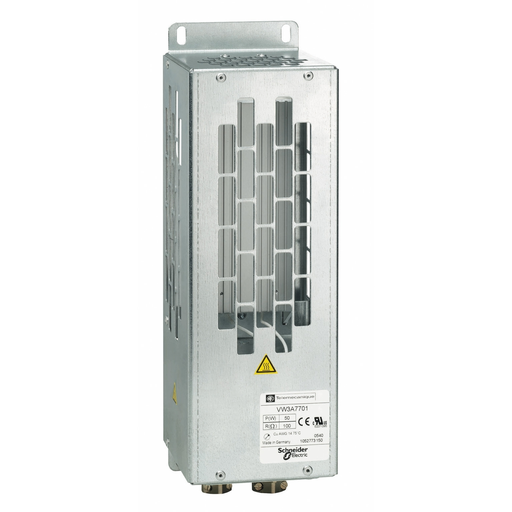

Square D VW3A7701 100 Ohm 50 W Dynamic Braking Resistor

Manufacturer: Square-D / Schneider | Catalog # VW3A7701 | Echo Electric Part # 147364
$981.64/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 1.9kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Technical Information

Applications
ALTIVAR 12ALTIVAR 312ALTIVAR 61ALTIVAR 71ALTIVAR 32ALTIVAR 31CALTIVAR 312 SOLARALTIVAR EASY 310
Net Weight
1.9 kg
Size
293 MM,95 MM,95 MM
Storage Temperature
-25-70 degrees C
TC Connection
<= 1.5 MMA TERMINAL (AWG 16) FOR TEMPERATURE CONTROL SWITCH<= 4 MMA TERMINAL (AWG 28) FOR DRIVE
Type
BREAKING RESISTOR
Voltage
24 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TELEMECANIQUE

General Product Info

12-Digit UPC
389118065737
Environmental Conditions
0-50 A?C
GTiN
03389118065734
Product UPC
78590168489
Weight
1.9 kg

Dimensions

Depth
95 mm
Height
293 mm
Warranty Length
18 mth
Width
95 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Germany
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
