INT-MAT KPT1170-010 PowerTap Recept

Manufacturer: Intermatic, Inc | Catalog # KPT1170-010 | Echo Electric Part # 149699
$144.03/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

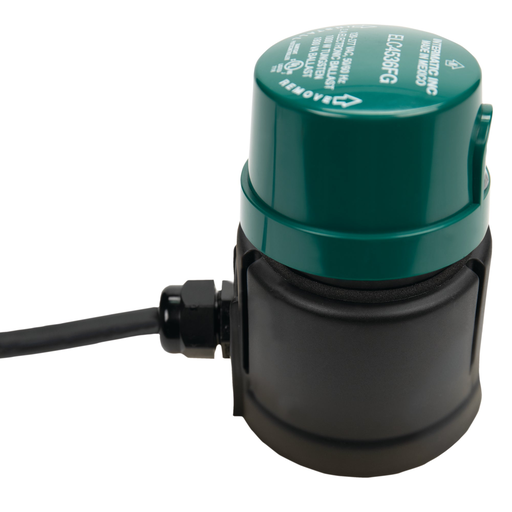

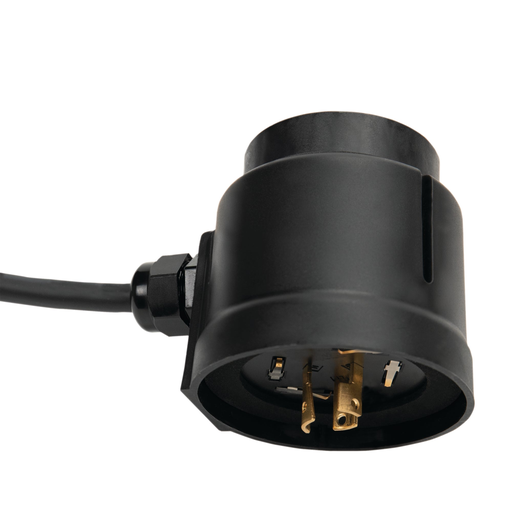

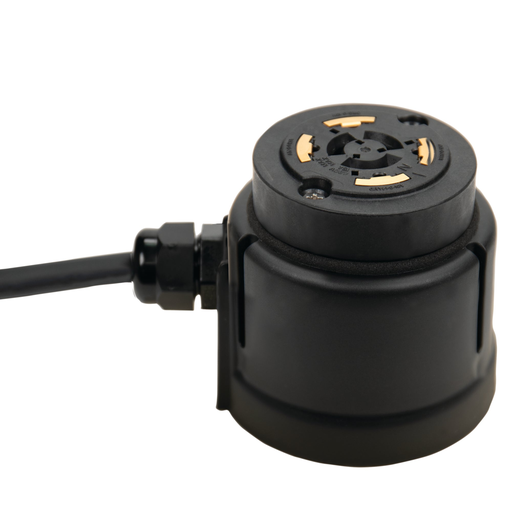

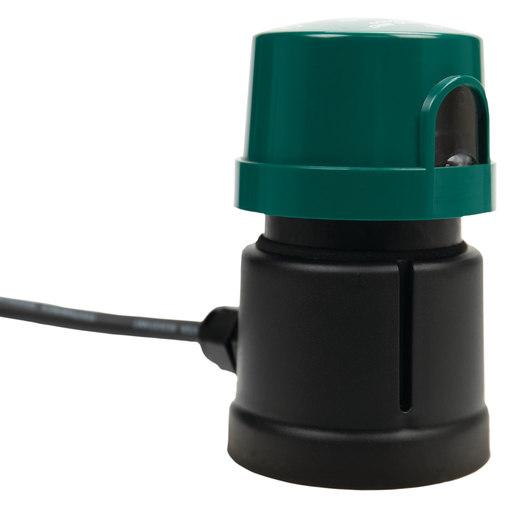

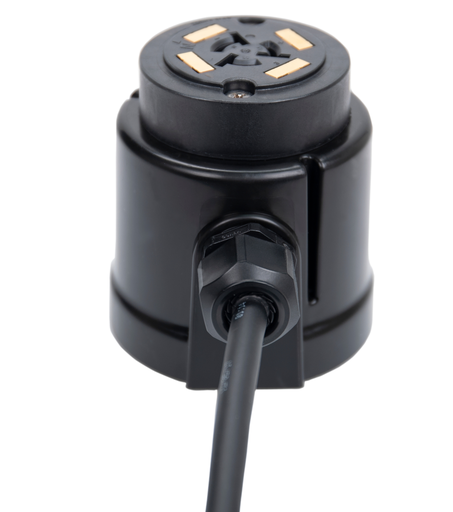

The KPT1170-010 PowerTap allows light pole-mounted ancillary devices to have quick access to electrical power. It taps into the power feed of a streetlight by connecting between the photocontrol and locking type receptacle. It does not disturb the operation of the light control unit, and it supports the 7-pin ANSI C136.41 style receptacle and controls.

Technical Information

Applications
Power Extension,Traffic Control
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275150614
Color
Black
GTiN
00078275150614

Dimensions

Height
3.63 Inch
Warranty Length
2 yr

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
USA
Features
  • 7-pin ANSI C 136.41 connector interface: 3-prong power sockets + 4 signal contacts
  • Taps into electric supply line of photocontrol with a #16 AWG cable out
  • Branch circuit protected by an auto-resetting 10 A, OCPD
  • Does not disturb the operation of lighting control units
  • NA
