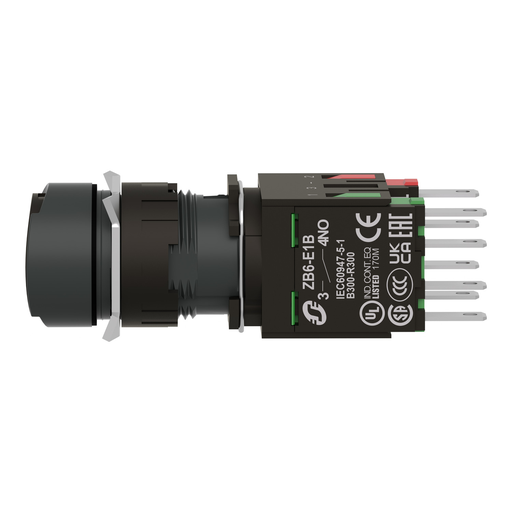

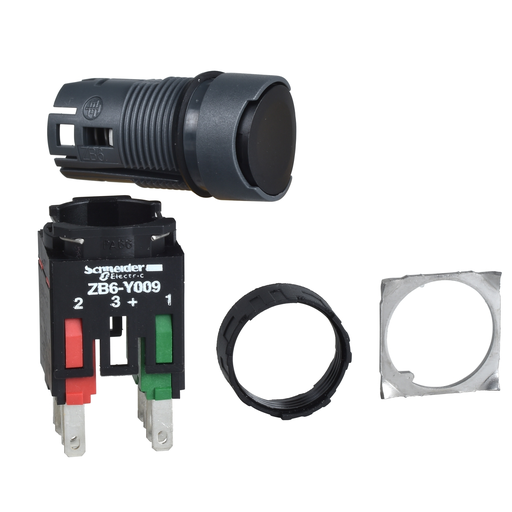

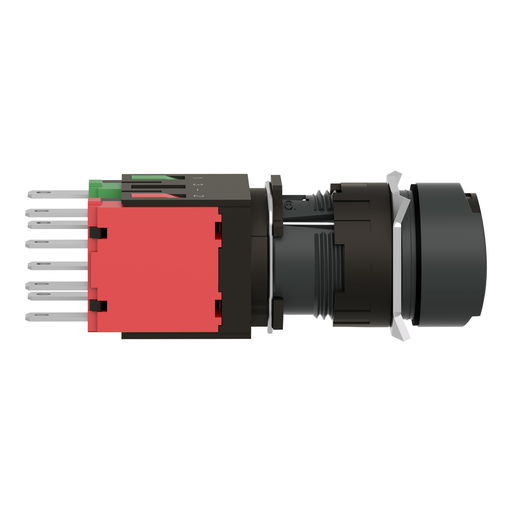

Product image for Square D XB6AA25B 16 mm 240 VAC 1.5 Amp 1NO 1NC Black Round Flush/Spring Return Non-Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XB6AA25B 16 mm 240 VAC 1.5 Amp 1NO 1NC Black Round Flush/Spring Return Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB6AA25B | Echo Electric Part # 149747
$36.87/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB6 black, complete push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a flush spring return push. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Technical Information

Action
Slow-break
Actuator
BLACK FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
BLACK
Net Weight
0.022 kg
Operating Force
3.5 N
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-5,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
Complete push-button
Voltage
240 VAC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB6

General Product Info

12-Digit UPC
389110764409
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110764406
Product UPC
78590135611
Weight
0.022 kg

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB6YA001
Related Products
  • ZB6AA2
  • ZB6Z5B
