Hubbell HBL2416 20 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-20R White Locking Flanged Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL2416 | Echo Electric Part # 150435
$71.52/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 125/250V, 3-Pole 4-Wire Grounding, NEMA L14-20R, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Insulgrip
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Surface, Screw

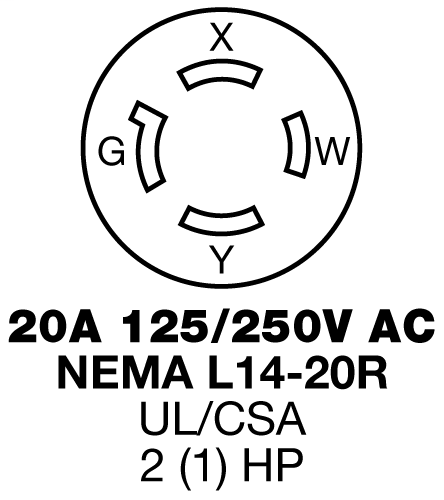

NEMA
L14-20R
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Single, Standard, Insulgrip
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038186
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585038186
Product UPC
78358503818
Weight
0.35 lb

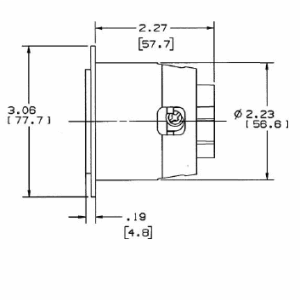

Dimensions

Height
2.27 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
