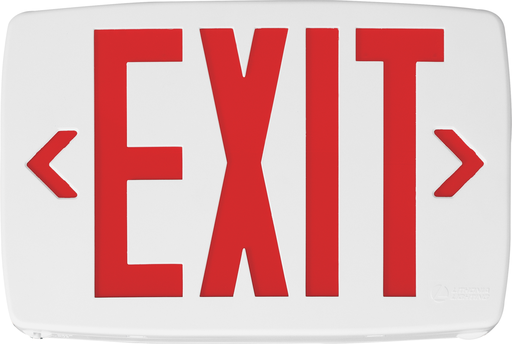

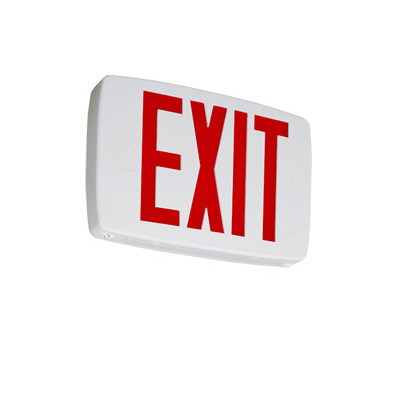

Product image for Lithonia LQM-S-W-3-R-120/277-ELN-M6 Stencil Face LED Exit Sign, Single Face, 120/277V, White Thermoplastic Housing, Red Lettering, Ni-Cad Battery
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Lithonia LQM-S-W-3-R-120/277-ELN-M6 Stencil Face LED Exit Sign, Single Face, 120/277V, White Thermoplastic Housing, Red Lettering, Ni-Cad Battery

Manufacturer: Lithonia Lighting | Catalog # LQMSW3R120277ELNM6 | Echo Electric Part # 151060
$101.97/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
25 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet
The Contractor Select Quantum LQM emergency exit sign with red letters from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail,Sports And Recreation,Warehouses
Input Voltage
120/277 V
Lamp Type
LED
Lens Material
Not Applicable
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
0
Power Source
Hardwired
Standard
NFPA 101,NFPA 70,ULCA Title 20
Type
Emergency Exit Sign
Voltage
120 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Acuity Brands Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
784231011553
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Matte
Fixture Type
Emergency Exit Unit (aka Combo), Exit Sign
GTiN
00784231011553
Housing Color
White
Letter Color
Red
Product Type
Emergency Exit Sign
Product UPC
78423101155
Shape
Square
Weight
1.4 lb

Dimensions

Depth
2 Inch
Height
7.62 Inch
Length
11-3/4 Inch
Warranty Length
5 yr
Width
2.000 in

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Features
  • FEATURES: With red lettering and emergency battery backup it is Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption
  • ENERGY SAVINGS: Easily replaces existing emergency exit signs
  • RATINGS: UL damp location listed 50°-104°F (10°-40°C) standard, NOM Certified (see options), meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, meets all applicable FCC Title 47, Part 15, Subpart B requirements
  • VOLTAGE: Functions between 120 and 277 volts with input wattage of 3.8 watts and has top, back or end mounting capability (canopy included)
  • LIFE TIME: The typical life of the LED lamp is 10 years
  • DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UL94V-O flame rating, UV-stable resin resists discoloration
  • BATTERY: Maintenance-free ni-cad battery provides 90 minutes of emergency power
  • WARRANTY: Buy with confidence with a 2-year limited warranty
  • DIMENSIONS: Length: 11.75 in. x Height 7.625 in. x Width 2.0 in.
