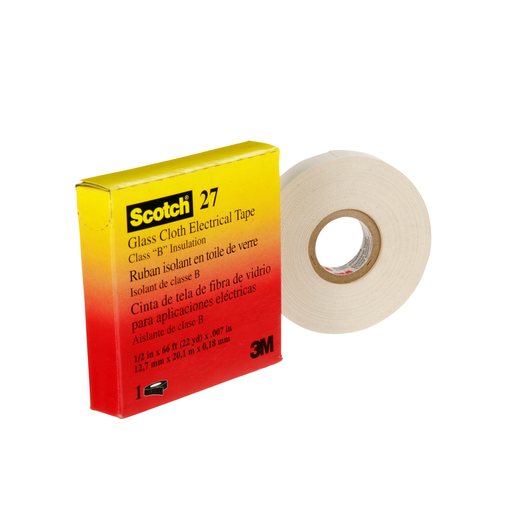

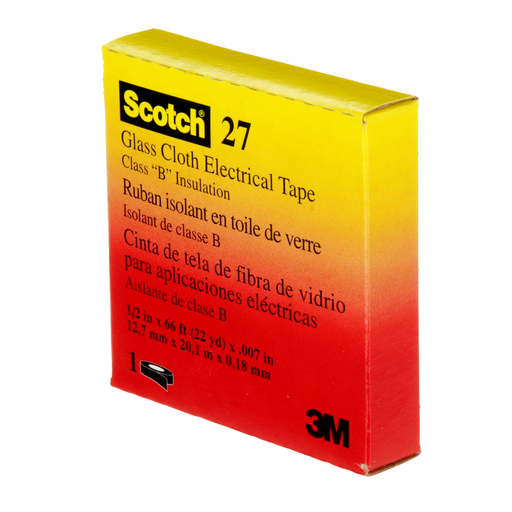

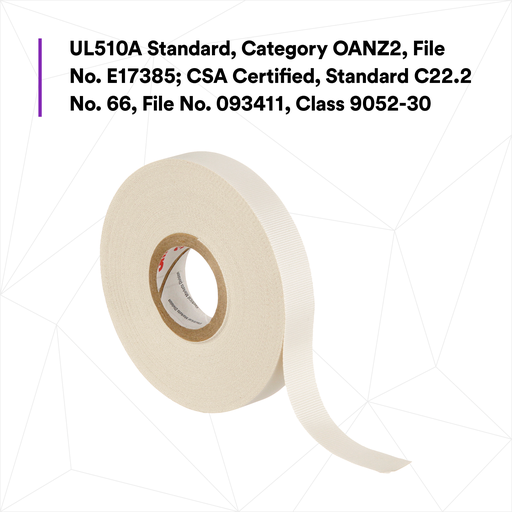

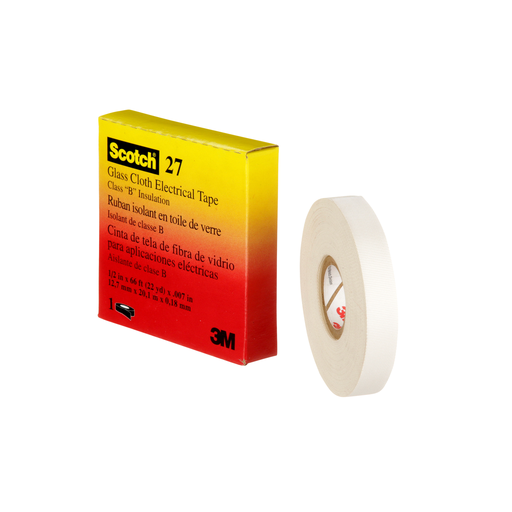

3M 27 1/2" x 66ft Glass Cloth Electrical Tape

Manufacturer: 3M | Catalog # 7000005814 | Echo Electric Part # 151195
$2,253.97/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
182 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
3M™ Glass Cloth Electrical Tape 27 is a 7 mil woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Technical Information

Adhesive Type
Rubber
Applications
For Electrical Maintenance Applications
Backing Material
Glass Cloth
Material
Rubber
Max Operating Temperature
150.0 degrees C
Min Operating Temperature
0.0 degrees C
Size
1/2"x66'
Temperature Rating
0 - 80 degrees C
Tensile Strength
150 lb/in
Voltage
600 VAC

Manufacturer Information

Brand
3M
Sub Brand
Scotch®

General Product Info

12-Digit UPC
054007150664
Color
White
GTiN
00054007150664
Product Type
Glass Cloth Tape
Product UPC
05400715066

Dimensions

Length
66 Foot
Overall Length
66.0 ft
Thickness
7 mil
Width
1/2 in

Certifications and Compliance

Country of Origin
USA
Features
  • PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperature to 302F (up to 150C)
  • GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
  • INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
  • PERFORMACE: Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
  • RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments
  • PRESSURE SENSITIVE ADHESIVE: Noncorrosive, solvent resistant, thermosetting rubber adhesive
