SQUARED GP2E06 Manual motor control

Manufacturer: Square-D / Schneider | Catalog # GP2E06 | Echo Electric Part # 151376
$66.02/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

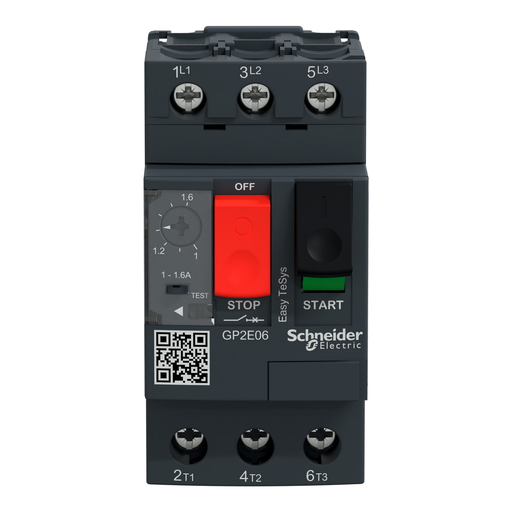

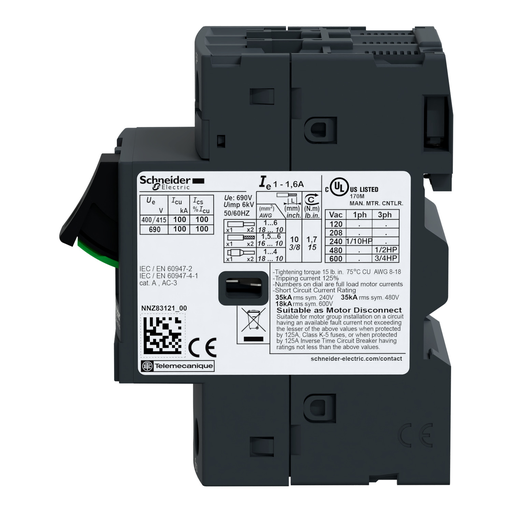

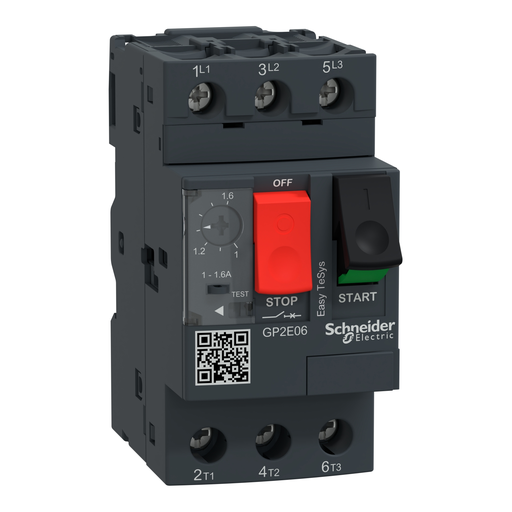

Easy TeSys manual motor controller, 3 poles (3P), 1.6A/690V, for 3-phase motor applications 0.37-0.55kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1-1.6A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL), Green Premium compliant (RoHS/REACh).

Technical Information

Line Rated Current
1.6 A
Net Weight
0.26 kg
Standard
CUL,EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1
Storage Temperature
-40-80 degrees C
Trip Point
22.5-22.5 A

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606481063390
GTiN
03606481063397
Product UPC
06481063397
Weight
0.26 kg

Dimensions

Depth
78.5 mm
Height
89 mm
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CUL
Country of Origin
Thailand
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
