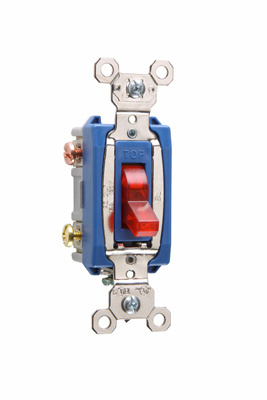

Product image for Pass & Seymour PS15AC3-RPL 15 Amp 120 VAC 3-Way Red Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PS15AC3-RPL 15 Amp 120 VAC 3-Way Red Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch

Manufacturer: Pass & Seymour / Legrand | Catalog # PS15AC3-RPL | Echo Electric Part # 151514
$111.64/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
3way Pilot Lighted Switch, Back & Side Wire, 15A 120VAC, Clear

Technical Information

Amperage
15 Amp
Applications
Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
1 Pole
Size
3.3"
Type
3-Way, Extra Heavy-Duty, Pilot Lighted
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195828
Color
Red
Finish
Matte
GTiN
00785007195828
Product UPC
78500719582
UNSPSC
39121507

Dimensions

Depth
1.09 Inch
Height
4.195 Inch
Width
1.25 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
