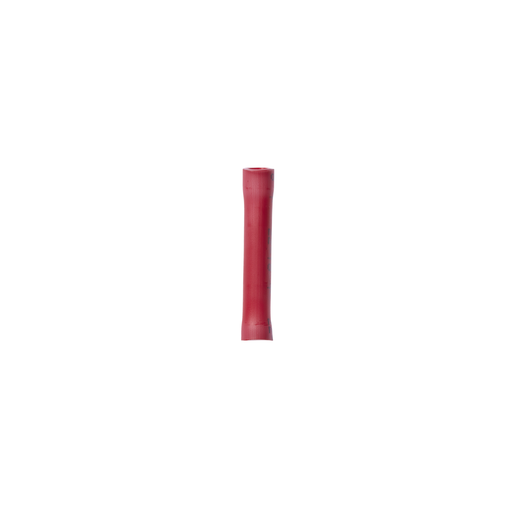

Product image for 3M MV18BCX 100/Bottle Seamless Vinyl Insulated Butt Connector
Image thumbnail 0
Image thumbnail 1
Email

3M MV18BCX 100/Bottle Seamless Vinyl Insulated Butt Connector

Manufacturer: 3M | Catalog # 7000133318 | Echo Electric Part # 151708
$94.98/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Corrosion resistance to water, salt, steam and other related contaminantsRed vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performanceBuilt-in wire stop for correct positioningAccommodates wire sizes 22 to 18 AWGMade of electrolytic copper for good conductivity and has tin plating for corrosion resistanceMaximum operating temperature of 221°F (105°C)UL Listed, CSA Certified and RoHS 2011/65/EU Compliant600V-rated for building wire and 1000V for signs, fixtures or luminaires

Technical Information

Barrel Length
0.28 in
Barrel Type
Seamless
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Butt
Type
Zero-Force Touch Button Accessory

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587393
Color
Red
GTiN
00051128587393
Product UPC
05112858739

Dimensions

Length
1.02 Inch
Overall Length
1.02 in
Thickness
0.031 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Built-in wire stop for correct positioning
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
