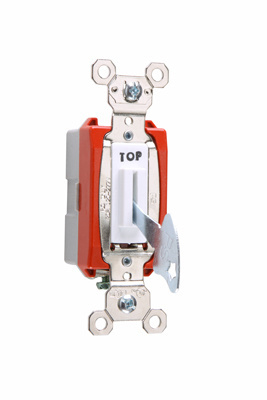

Product image for Pass & Seymour PS20AC1-WL 1Pole Lock Switch, Back & Side Wire, 20Amp 120/277Volt, White (Key Can Be Removed In Both Positions)
Email

Pass & Seymour PS20AC1-WL 1Pole Lock Switch, Back & Side Wire, 20Amp 120/277Volt, White (Key Can Be Removed In Both Positions)

Manufacturer: Pass & Seymour / Legrand | Catalog # PS20AC1-WL | Echo Electric Part # 151714
$70.38/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
1 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
1pole Lock Switch, Back & Side Wire, 20amp 120/277volt, Red

Technical Information

Action
Off
Actuator
Key, Toggle
Amperage
20 Amp
Applications
Commercial,Residential
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Commercial
Number of Poles
1 Pole
Size
3.3"
Type
Heavy Duty, Shallow
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007196450
Color
White
Finish
Matte
GTiN
00785007196450
Product UPC
78500719645
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
2-3/8 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
