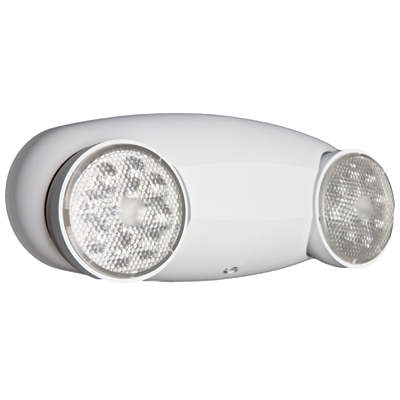

Product image for Lithonia ELM2 120/277v QUANTUM Incandescent Emergency Light Unit, White, 2-Lamp
Image thumbnail 0
Image thumbnail 1
Email

Lithonia ELM2 120/277v QUANTUM Incandescent Emergency Light Unit, White, 2-Lamp

Manufacturer: Lithonia Lighting | Catalog # ELM2LED | Echo Electric Part # 151957
$72.10/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
A slim, LED emergency lighting unit for general purpose applications. Provides a minimum of 90 minutes of illumination for the rated wattage upon loss of AC power. Ideal for applications requiring attractive unit equipment with quick installation.

Technical Information

Applications
Emergency and Safety
Lamp Type
Incandescent
Lens Material
Plastic
Light Source
LED
Mounting Type
Surface,Wall
Number of Lamps
2
Type
Emergency Lighting Unit
Voltage
120/277 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
784231010839
Color
White
Environment
Indoor
Finish
Matte
Fixture Type
Emergency Lighting Unit

Dimensions

Warranty Length
5 yr
Features
  • Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof.
  • Features two LED lamp heads with 12 parallel white LEDs in each. The typical life of the LED lamp is 10 years.
  • Unique track-and-swivel arrangement permits full range of direction of lamp head adjustment.
  • Battery: Sealed, maintenance-free Ni-cad battery that delivers 90 minute capacity to emergency lamps.
Installation
  • Ceiling- or wall-mount standard. Flexible conduit entry provision on top of the unit.
Intended Use
  • Provides a minimum of 90 minutes of illumination for the rated wattage upon loss of AC power. Ideal for applications requiring attractive unit equipment with quick installation.
Electrical
  • Dual-voltage input capability (120/277V). Edge connector on printed circuit board ensures long-term durability.
  • Current-limiting charger maximizes battery life and minimizes energy consumption. Provides low operating costs.
  • Short-circuit protection current-limiting charger circuitry protects printed circuit board from shorts.
  • Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature.
  • Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages. Prevents over/ undercharging that shortens battery life and reduces capacity.
  • Filtered charger input minimizes charge voltage ripple and extends battery life.
  • AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Optics
  • Two LED lamp heads with polycarbonate lens, 12 series-parallel white LEDs each, provide redundant light sources to ensure emergency lighting performance. Typical LED lamp life is 10 years.
Construction
  • White, compact, low-profile contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. UL94V-O flame rating. UV-stable resin resists discoloration from natural and man-made light sources.
  • Low-profile, integrated test switch/pilot light. Easily visible bright red status indicator.
  • Unique track-and-swivel arrangement permits full range of direction of lamp head adjustment. Universal J-box mounting pattern. Tool-less access for maintenance.
Listings
  • UL damp location listed standard 50-104°F (10-40°C). Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards.
