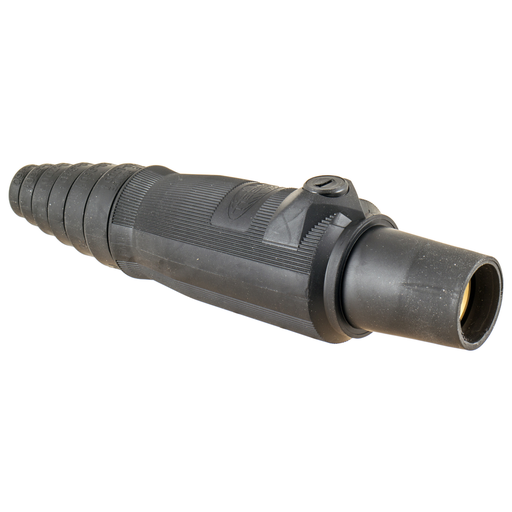

Product image for Hubbell HBL400FBK 400 Amp 600 VAC 250 VDC 1-Pole Black FeMale Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL400FBK 400 Amp 600 VAC 250 VDC 1-Pole Black FeMale Plug

Manufacturer: Hubbell Wiring Device | Catalog # HBL400FBK | Echo Electric Part # 152021
$69.41/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
5 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Black

Technical Information

Amperage
400 Amp
Applications
High Ampacity Connections
Conductor Size
2/0-4/0 AWG
Connection Type
Pressure Screw Terminal
Cord Type
Listed SC/PPC Type
Current
400 Amp
Material
Composite
Number of Conductors
1
Number of Poles
1 Pole
Number of Wires
1 Wire
Size
Standard Sized
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Female
TC Connection
Pressure Plate
Type
Standard, 1-Pole
Voltage
600 VAC/250 VDC
Wattage
240000 Watt
Wire Size
00-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585113722
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585113722
Product UPC
78358511372

Dimensions

Height
1.7 Inch
Length
6.7 Inch
Width
3.760 in

Certifications and Compliance

Country of Origin
China
Features
  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
  • Easily Identifiable Cable with cut off points for secure fit
