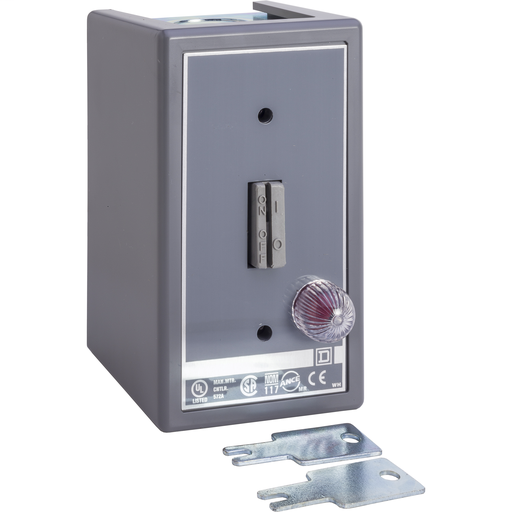

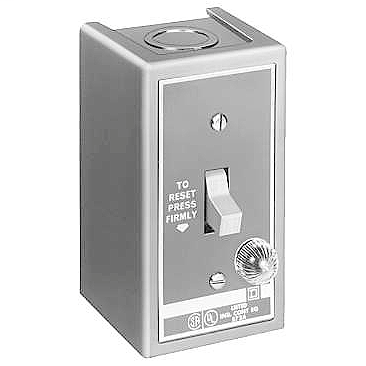

Product image for SQD 2510FG3P MANUAL STARTER 277VAC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD 2510FG3P MANUAL STARTER 277VAC

Manufacturer: Square-D / Schneider | Catalog # 2510FG3P | Echo Electric Part # 152030
$261.65/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Square D Type F fractional motor manual starter provide overload protection and manual On-Off control for small single phase AC motors. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.

Technical Information

Amperage
16A
Applications
PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS.
Enclosure
NEMA 1
Number of Phases
1 Phase
Number of Poles
1 Pole
Reset Type
THERMAL - MELTING ALLOY
Size
2.44 IN,2.75 IN,4.25 IN
TC Connection
0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP
Type
NON-REVERSING MANUAL STARTER
Voltage
600//250 VAC//VDC

Manufacturer Information

Brand
Square D
Sub Brand
F

General Product Info

12-Digit UPC
785901553984
Environmental Conditions
SINGLE UNIT METAL BOX - GENERAL PURPOSE
GTiN
00785901553984
Product UPC
78590155398

Dimensions

Depth
2-3/4 Inch
Height
4-1/4 Inch
Width
2.44 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA LR25490 Class 3211 05,UL Listed File E42243 CCN NLRV
Country of Origin
Mexico
