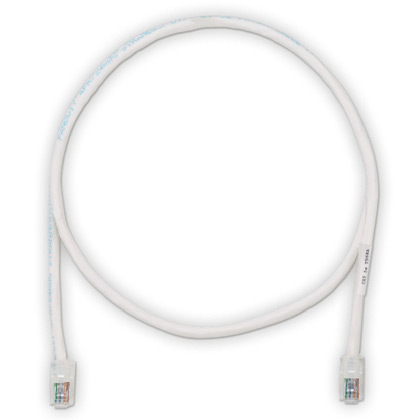

Product image for Panduit UTPCH20Y Cat 5e 24 AWG UTP Copper Patch Cord, 20 ft, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Panduit UTPCH20Y Cat 5e 24 AWG UTP Copper Patch Cord, 20 ft, White

Manufacturer: Panduit Corp | Catalog # UTPCH20Y | Echo Electric Part # 152272
$23.43/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page

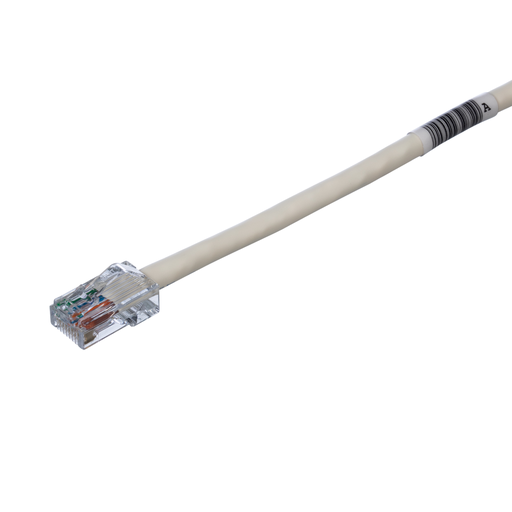

The TX5e™ Cat 5e UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs on each end. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 20 feet in length and off white.

Technical Information

Applications
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot Color
No Boot
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 5e
Plug Type
Modular Plug
Temperature Rating
140 degrees F
Type
Category 5e
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983165001
Color
Off-White
GTiN
00074983165001
Jacket Material
Polyvinyl Chloride
Product UPC
07498316500
UNSPSC
43223303

Dimensions

Cable Length
20 ft
Length
20 Inch
Outer Diameter
0.22 in
Outside Diameter
5.5 mm
Overall Length
20 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
