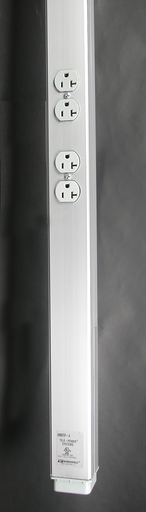

Product image for Wiremold AMDTP-412 2-1/4 x 5" 12 Foot Aluminum Power and Communication Pole
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Wiremold AMDTP-412 2-1/4 x 5" 12 Foot Aluminum Power and Communication Pole

Manufacturer: The Wiremold Co | Catalog # AMDTP-412 | Echo Electric Part # 152273

$670.82/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 12' 5''(3.8m. Factory wired with 20A 125V fed-spec general grade duplex style receptacles. An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections. Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished. Anodized aluminum finish. Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m). NOTE 1: Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders. Consult factory for more information. Can be factory- or field-wired with many commercially available devices. NOTE 2: Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY.

Technical Information

Applications
Commercial, Office
Enclosure
Aluminum
Material
Aluminum
Type
Tele-Power Poles

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776088397
Color
Gray
Finish
Aluminum
GTiN
00786776088397
Product Series
Tele-Power
Product UPC
78677608839

Dimensions

Height
149.86 Inch
Width
2.312 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Features
  • Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 12' 5''(3.8m. Factory wired with 20A 125V fed-spec general grade duplex style receptacles.
  • An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections.
  • Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished.
  • Anodized aluminum finish. Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m). NOTE 1: Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders.
  • Consult factory for more information. Can be factory- or field-wired with many commercially available devices. NOTE 2: Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY.
Certifications
  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed
