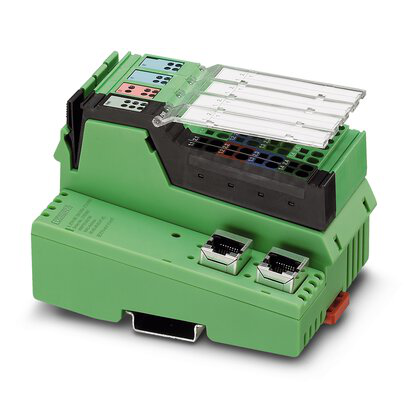

Product image for PHNX 2897758 IL EIP BK DI8 DO4 2TX-PAC
Email

PHNX 2897758 IL EIP BK DI8 DO4 2TX-PAC

Manufacturer: Phoenix Blocks | Catalog # 2897758 | Echo Electric Part # 152890
$937.29/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Inline, Bus coupler, EtherNet/IP™, RJ45 jack, Digital inputs: 8, 24 V DC, connection technology: 3-conductor, Digital outputs: 4, 24 V DC, connection technology: 3-conductor, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including Inline connectors and marking fields

Technical Information

Amperage
0.98 Amp
Mounting Type
DIN Rail
Output Voltage
24 V
Power Rating
3 W
Temperature Rating
-25 to 60 degrees C
Type
In-Line
Voltage
19.2-30 VDC

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
046356157921
Environmental Conditions
5 - 95% Humidity, -25 to 85 C Storage Temperature

Dimensions

Depth
71.5 mm
Height
119.8 mm
Width
80 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Eight digital inputs, four digital outputs (on-board)
  • EtherNet/IP™, Version 1.2
  • Web-based management
  • 2 RJ45 connections
  • Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
Approvals
  • cULus Listed
  • cULus Recognized
  • UL Listed
  • cUL Listed
  • UL Recognized
  • cUL Recognized
